0.50" Diameter – Mountable Clamping Two Piece Shaft Collar - 303 Stainless Steel

Description

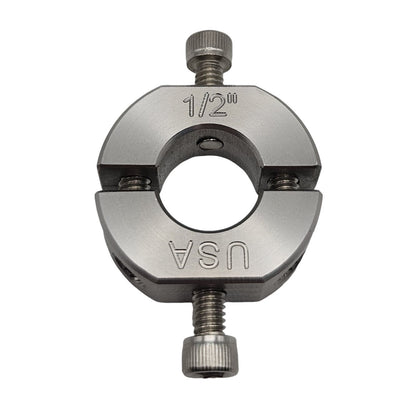

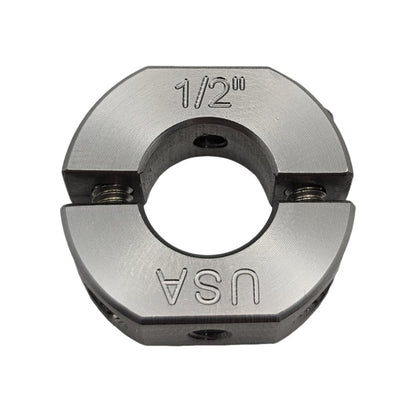

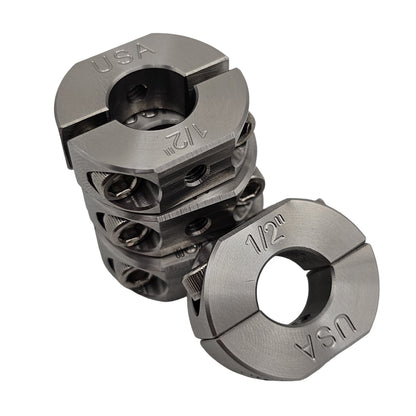

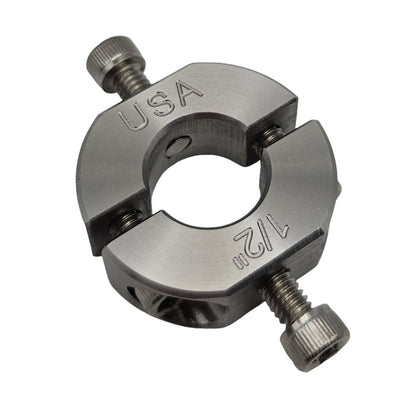

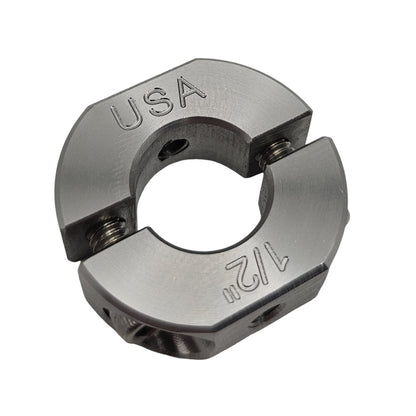

• Mountable Two-Piece Design: This two-piece split shaft collar features flats on the outer diameter with tapped holes, allowing for easy mounting of brackets, sensors, and other components to round objects. The two-piece design allows it to be easily installed without having to disassemble components or having access to the end of the shaft
• 303 Stainless Steel: Constructed from 303 stainless steel for excellent corrosion resistance, making it ideal for wet or corrosive environments. Commonly used in the food processing and marine industries.
• Non-Marring Clamping: Provides a secure, non-marring fit with a significantly higher clamping force than set-screw collars, ensuring no damage to the shaft.

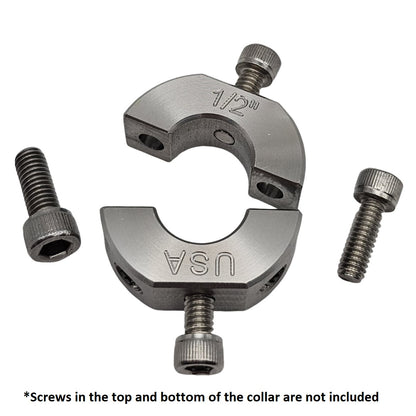

• Includes Hardware: Comes with two #8-32 x 1/2” 18-8 stainless steel socket head cap screws. (Please note that the only hardware included is the two screws that hold the collar together)
• Premium Quality: Each collar is made in the USA with deburred edges and holes, and a clear size engraving for easy identification.

Downloads

Step File: MM-SS303-0500.step

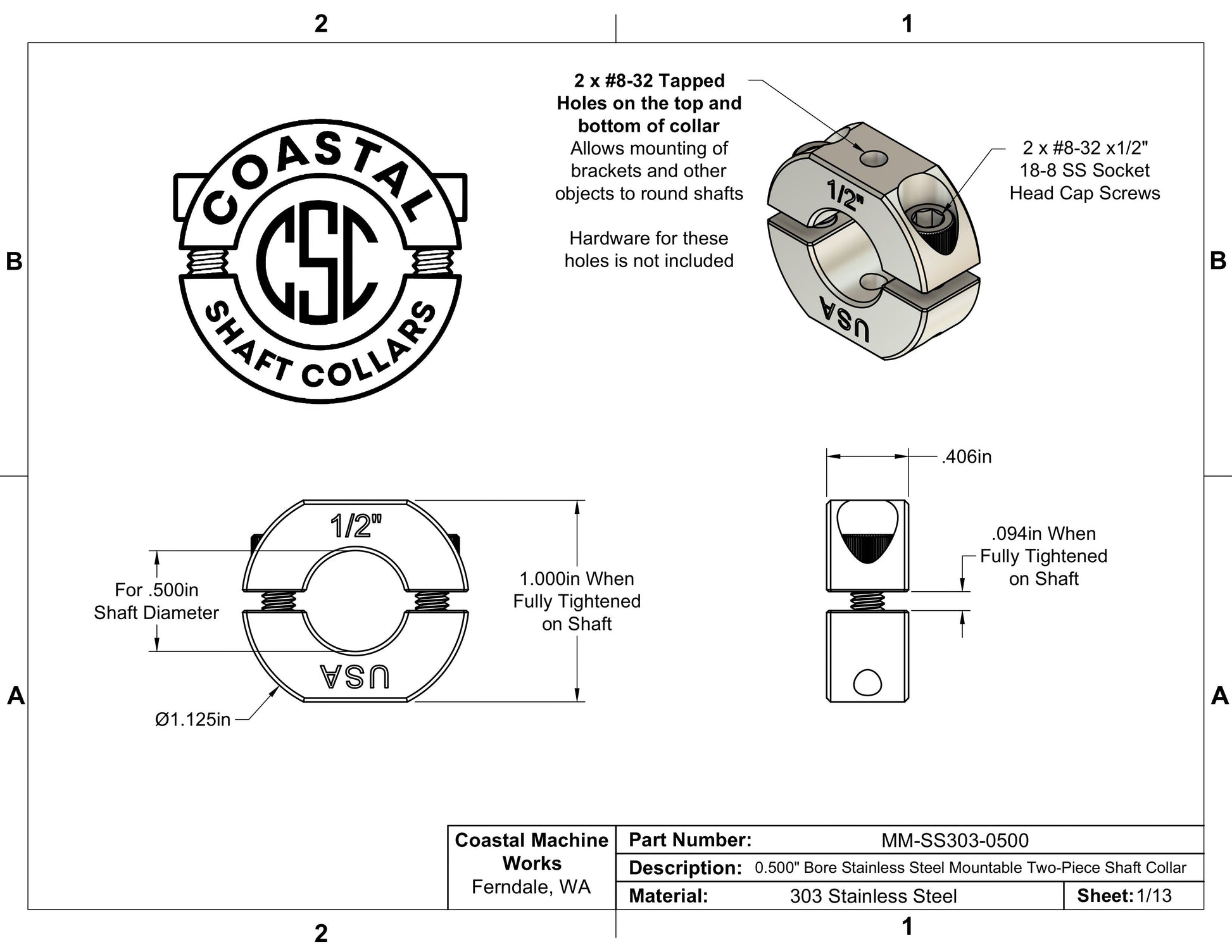

2D Drawing: MM-SS303-0500.pdf
