Coastal Shaft Collars
0.50" Diameter - Clamping Two Piece Shaft Collar - 2024 Aluminum
0.50" Diameter - Clamping Two Piece Shaft Collar - 2024 Aluminum
Regular price
$4.35 USD
Regular price
Sale price
$4.35 USD
Unit price
per
165 in stock
Couldn't load pickup availability
Bulk Discounts (Visible in Cart)
Product Details
| Material | 2024 Aluminum |
| For Shaft Diameter | 0.50" |
| Outside Diameter | 1.125" |
| Width | 0.406" |
| Part Number | 2P-AL2024-0500 |
| Mcmaster Carr Equivalent | 6436K71 |
| Grainger Equivalent | SP-8-A |
| STEP File Download | |

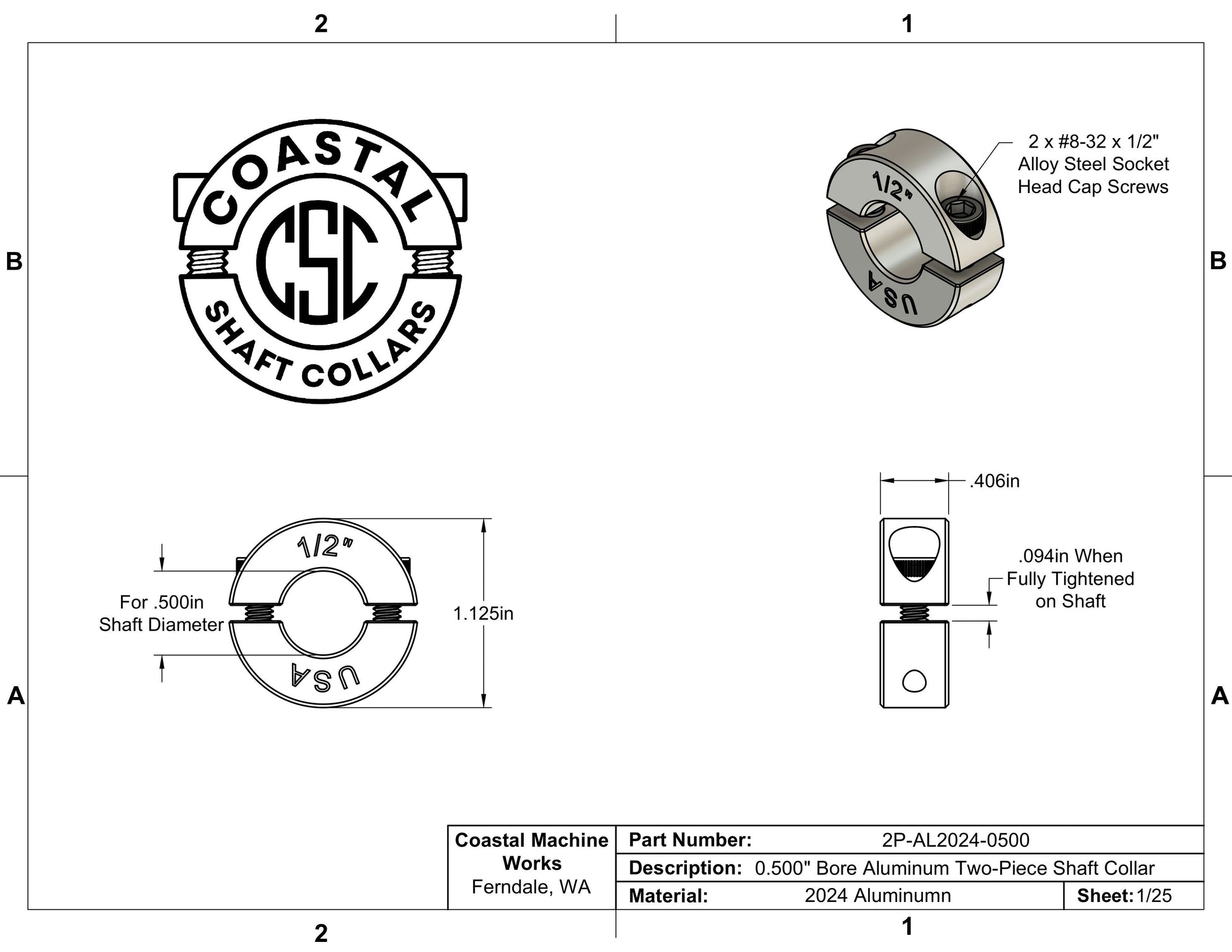

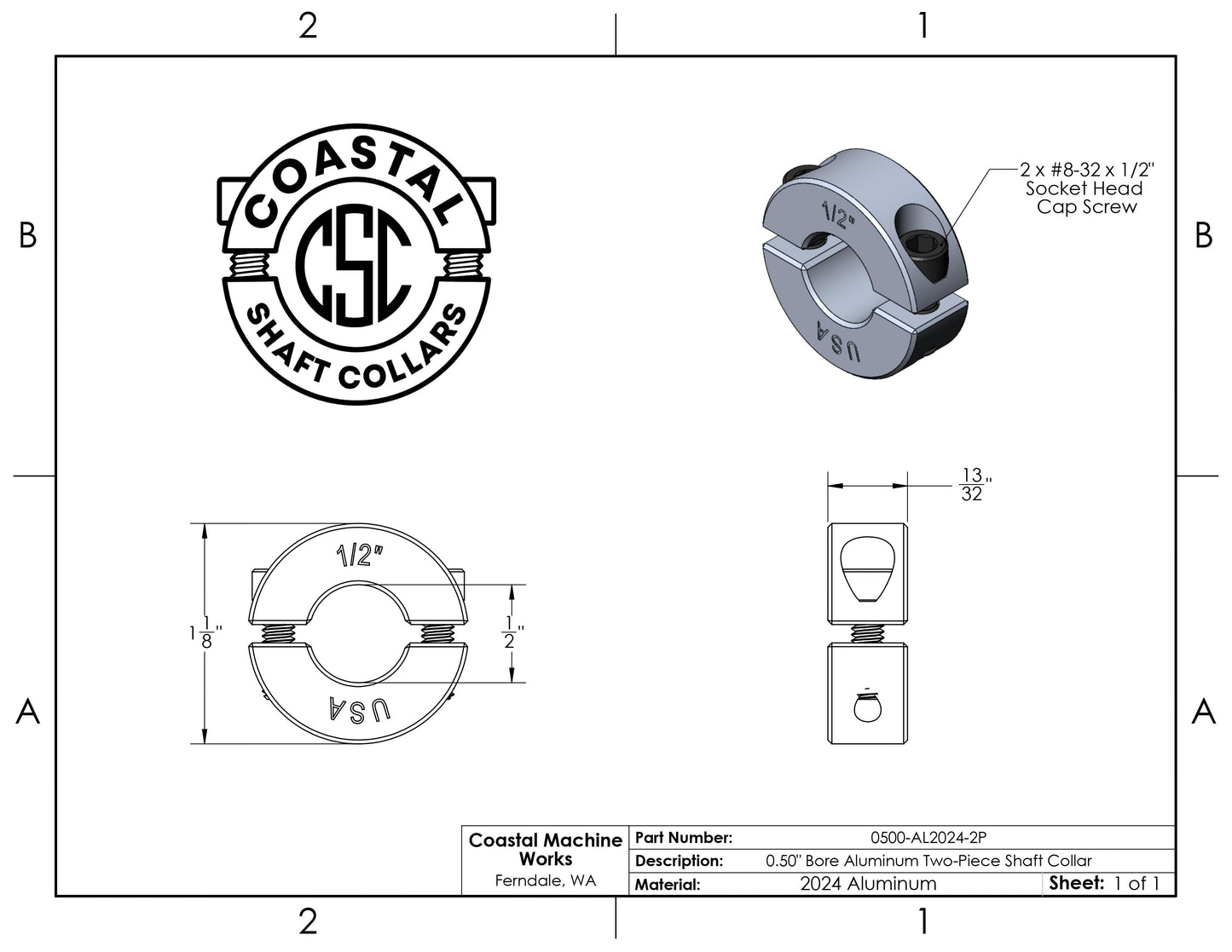

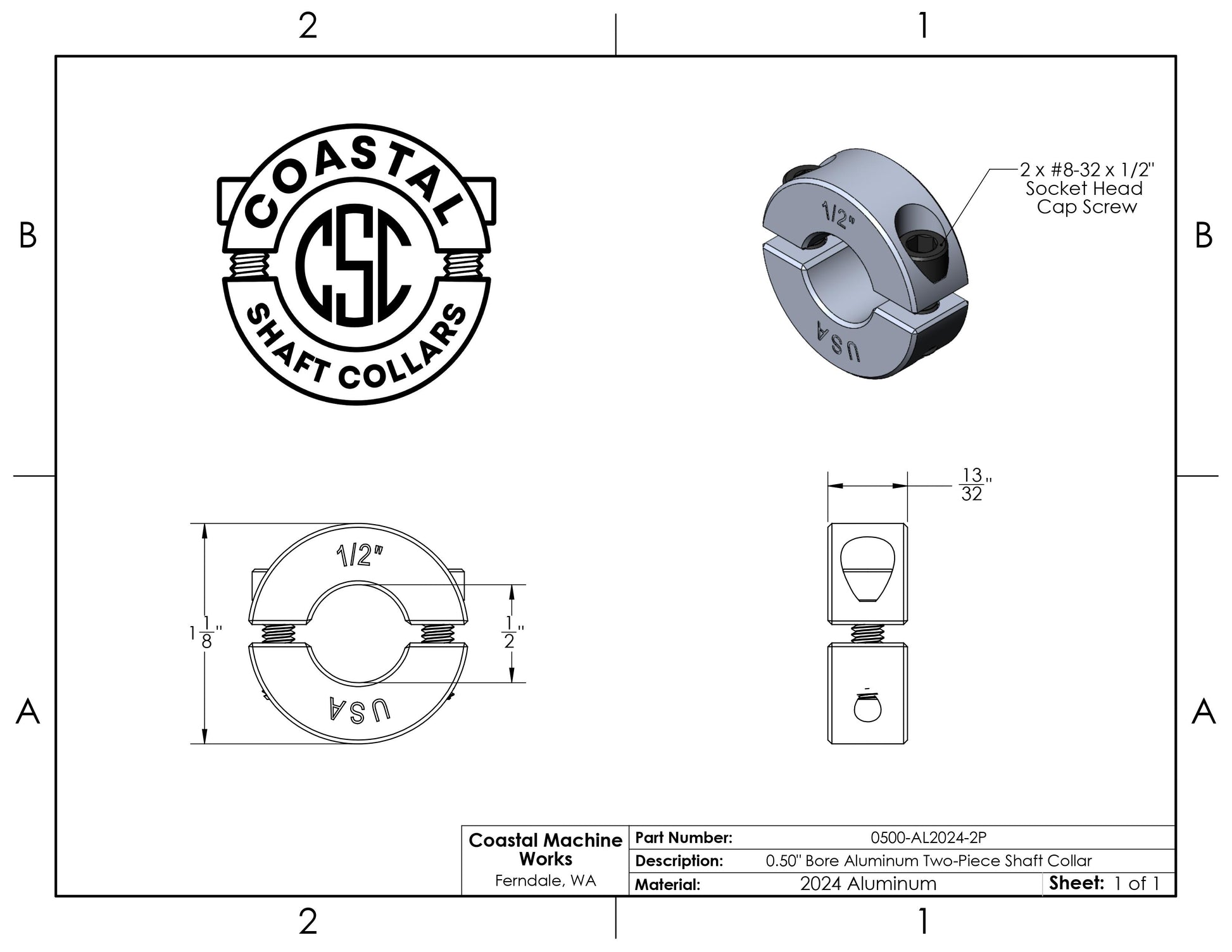

| Drawing Download |
Description
- Two-Piece Design: This two-piece split shaft collar can be easily installed and reinstalled without having to disassemble components or having access to the end of the shaft
- 2024 Aluminum: Constructed from 2024 aluminum, these shaft collars are light weight and offer good corrosion resistance. 2024 aluminum is significantly stronger than 6061, reducing the chance of stripped threads.
- Non-Marring Clamping: Provides a secure, non-marring fit with a significantly higher clamping force than set-screw collars, ensuring no damage to the shaft.
- Includes Hardware: Comes with two #8-32 x 1/2" black oxide coated alloy steel socket head cap screws.
- Premium Quality: Each collar is Made in the USA with deburred edges and holes, and a clear size engraving for easy identification.
