0.625" Diameter – Mountable Clamping Two Piece Shaft Collar - 303 Stainless Steel
0.625" Diameter – Mountable Clamping Two Piece Shaft Collar - 303 Stainless Steel
Regular price
$7.97 USD
Regular price
Sale price
$7.97 USD
Unit price
per
Couldn't load pickup availability

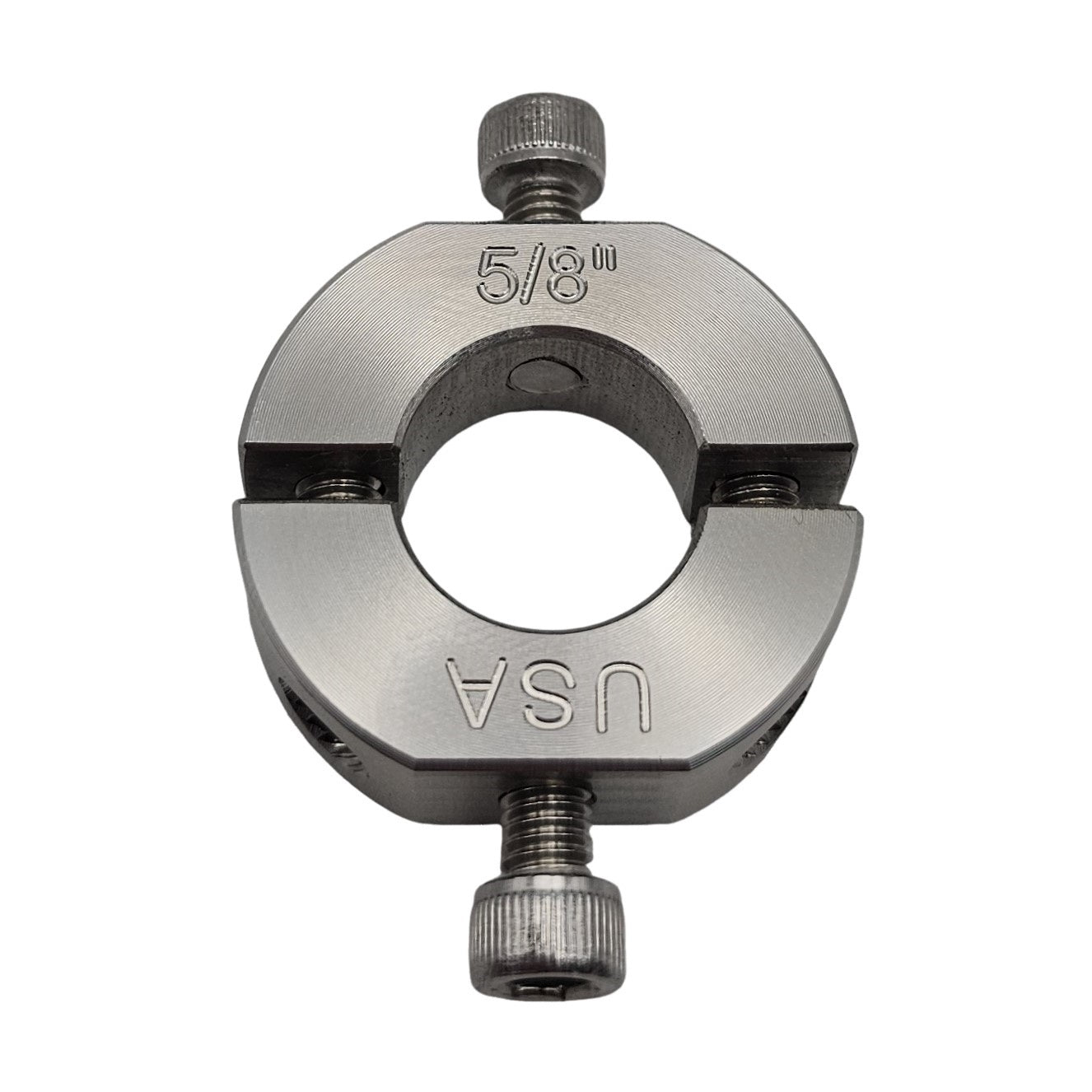

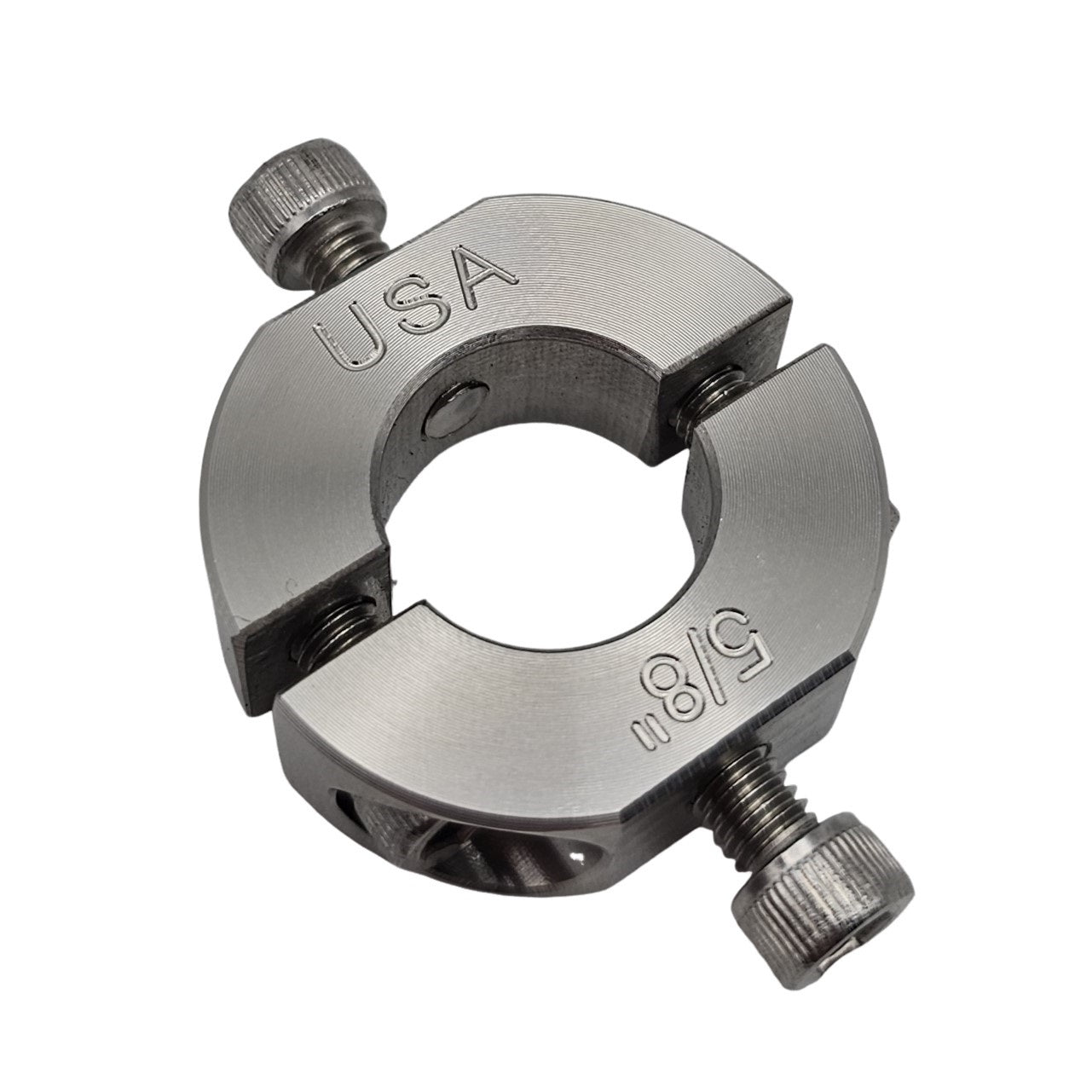

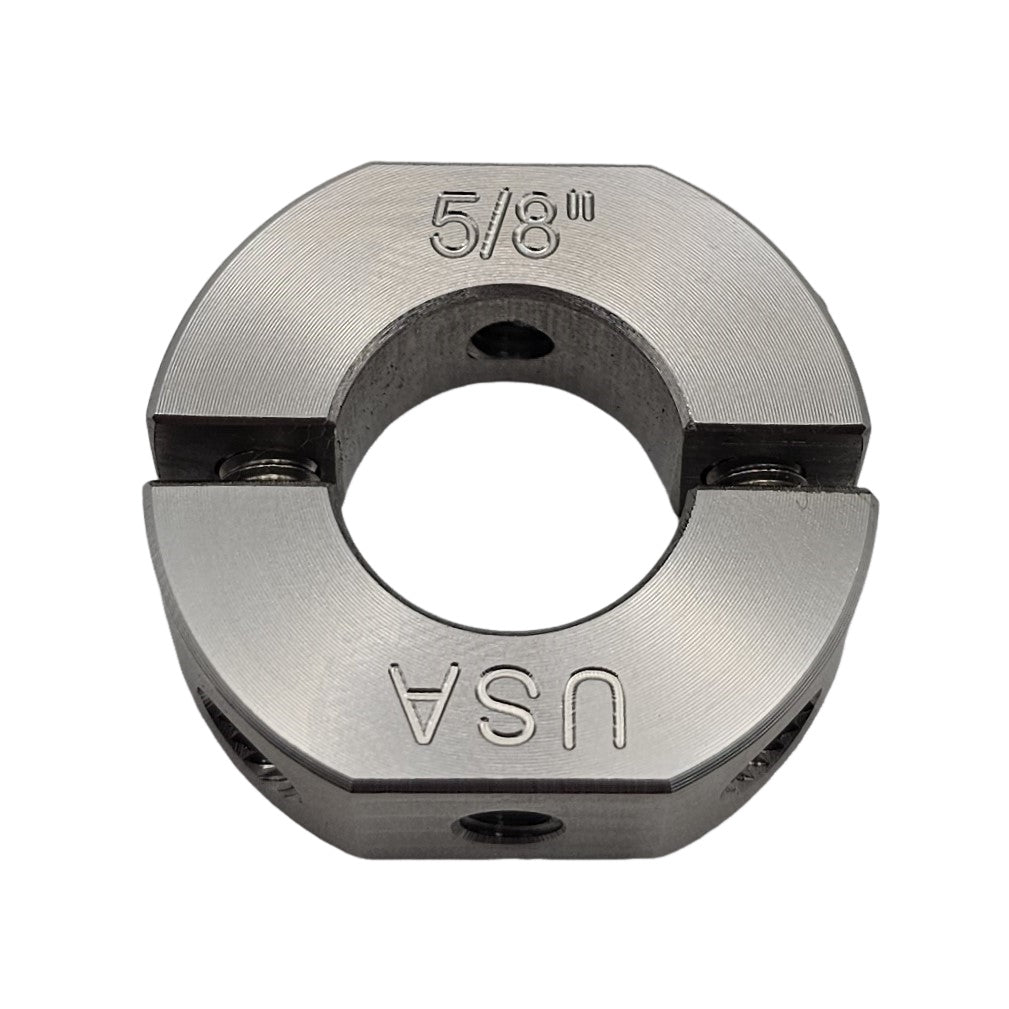

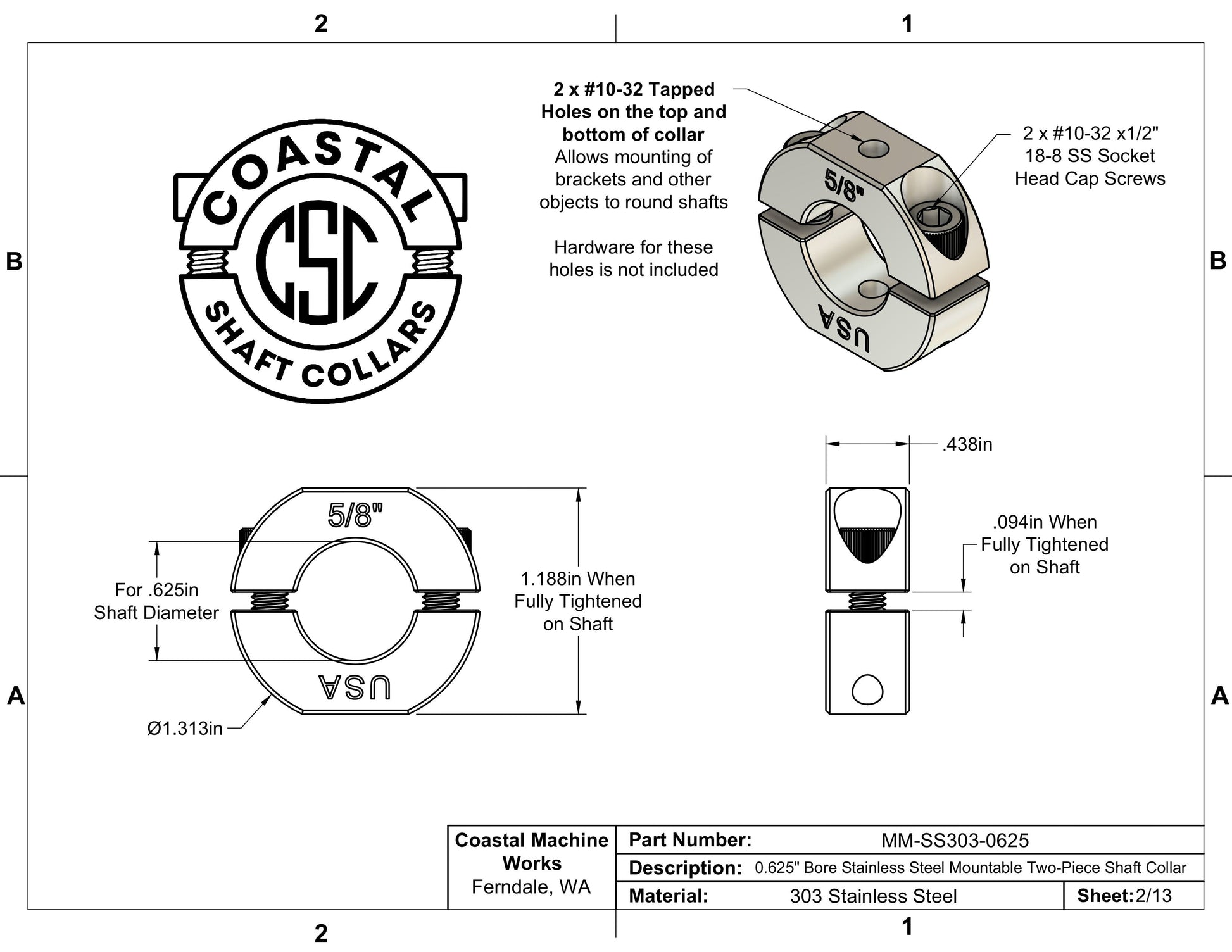

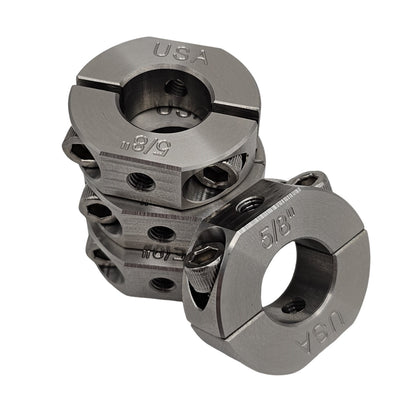

- These two-piece stainless steel split shaft collars have an inside diameter of 0.625 inches, an outside diameter of 1.313 inches and a thickness of 0.438 inches.

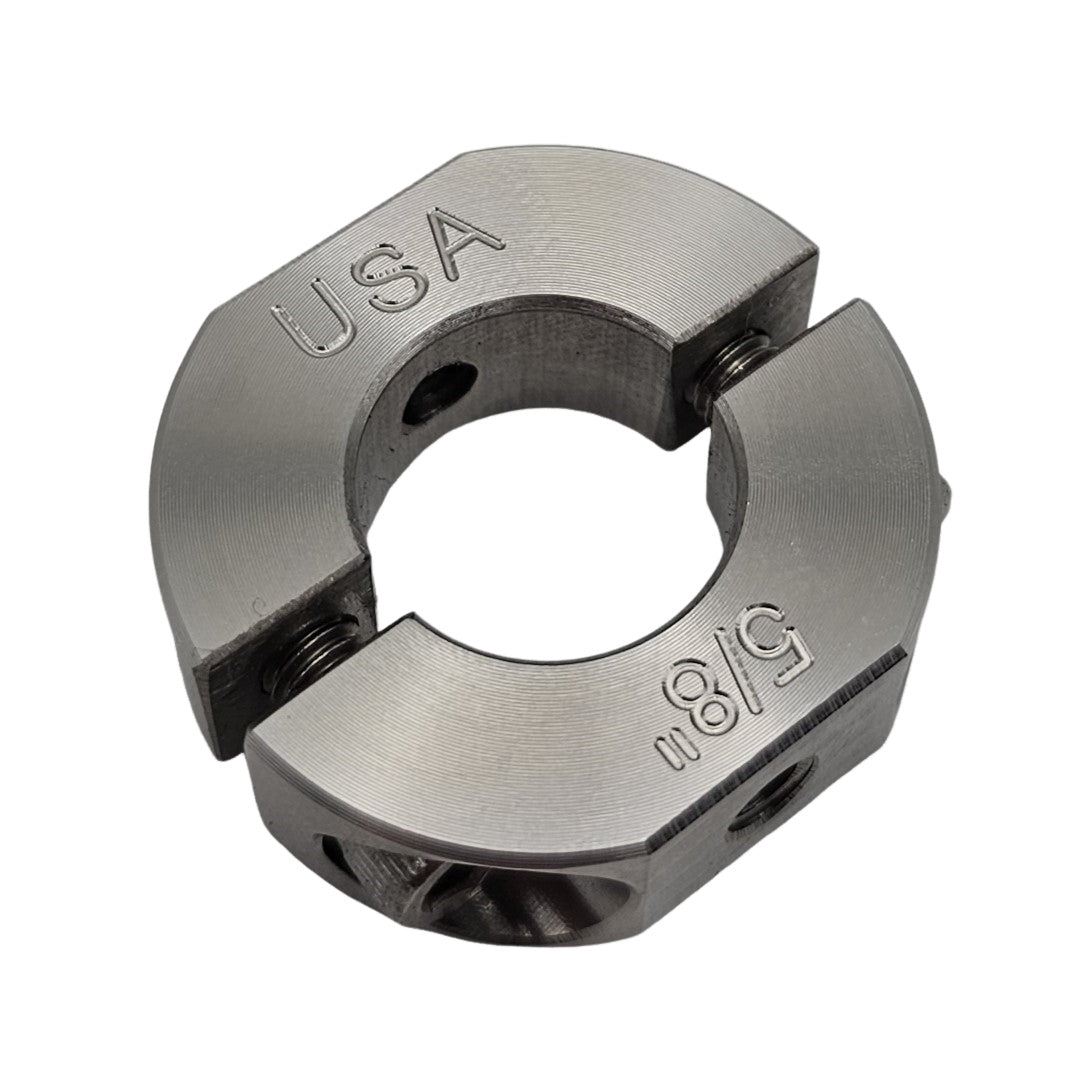

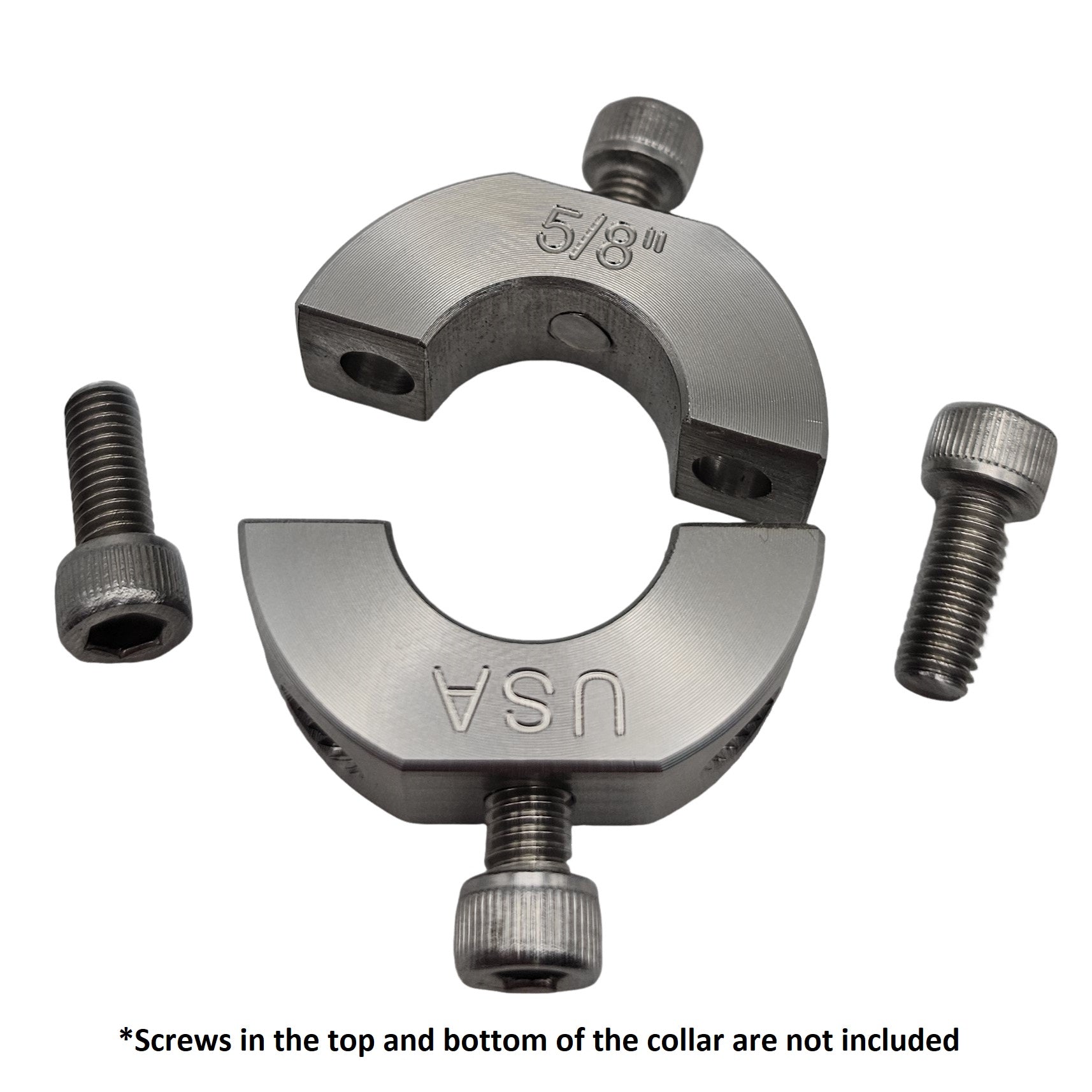

- These shaft collars feature flats on the outer diameter with tapped holes, allowing for easy mounting of brackets, sensors, hinges and other components to round objects. (Please note that the only hardware included is the two screws that hold the collar together)

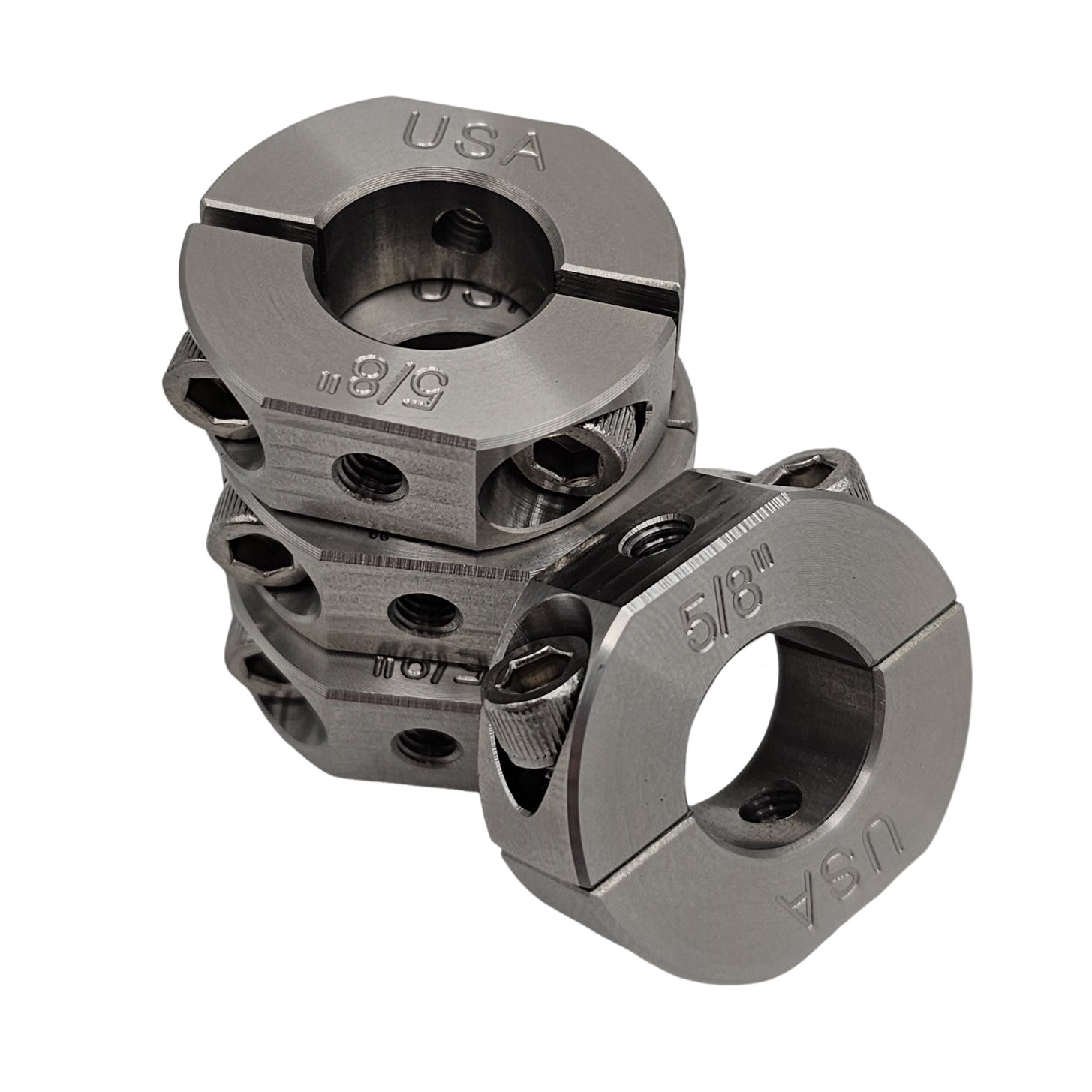

- Made in the USA. We strive to deliver high quality and precise collars. Every collar has its edges and holes deburred and its corresponding inside diameter engraved on its front face for easy identification.
- Made from 303 stainless steel, these shaft collars have excellent corrosion resistance and are ideal for wet environments or when corrosive chemicals are present.

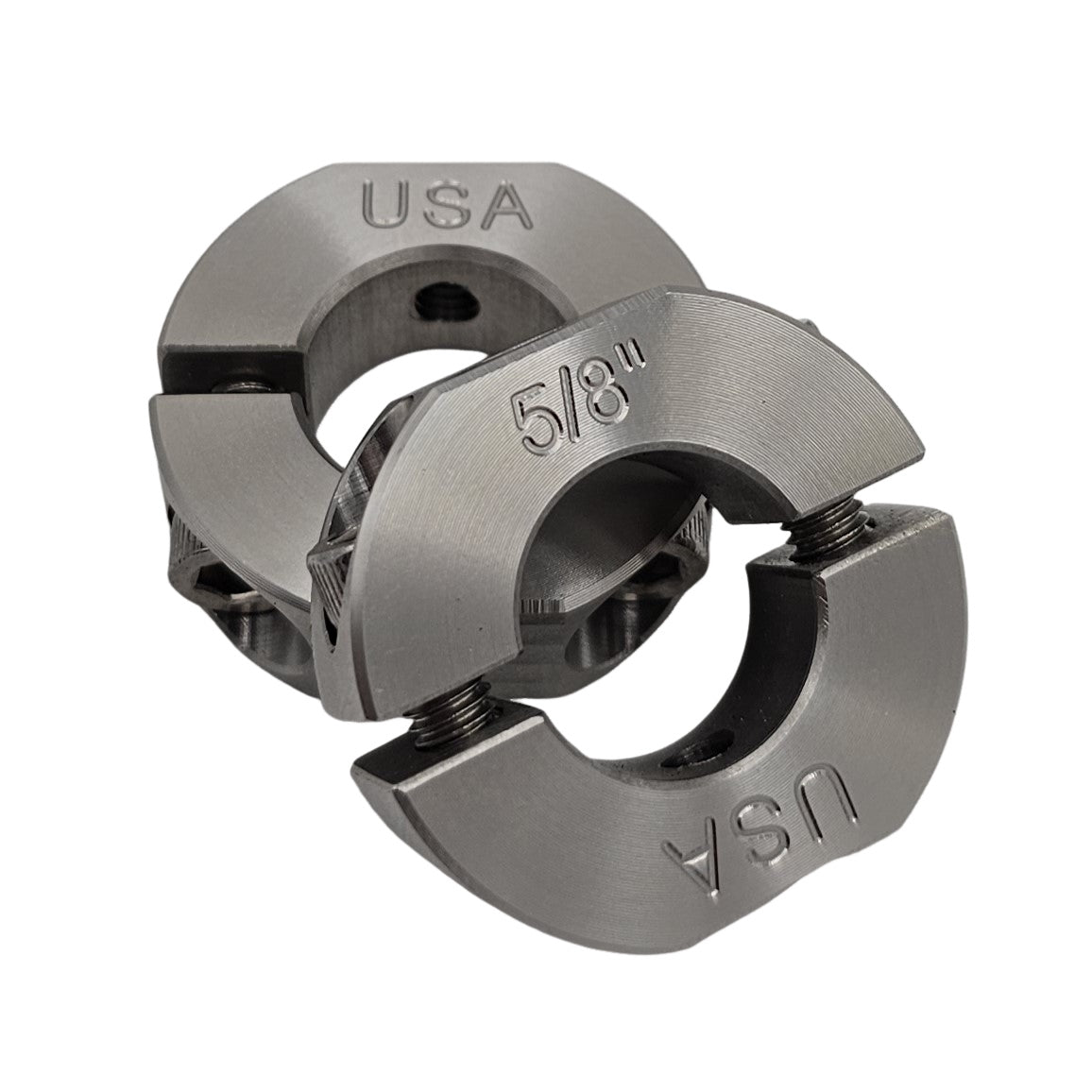

- The two-piece design makes installation simple. The split collar can be disassembled and reassembled anywhere along the shaft without needing to remove other components or having access to the ends of the shaft.
- Strong, even clamping pressure around the shaft is created using the two included #10-32 x 1/2" stainless steel socket head screws. Compared to set screw style collars, the two-piece design has significantly higher clamping force and will not mar the shaft/pipe.
