Coastal Shaft Collars
0.875" Diameter - Clamping Two Piece Shaft Collar - 2024 Aluminum
0.875" Diameter - Clamping Two Piece Shaft Collar - 2024 Aluminum
Regular price
$5.72 USD
Regular price
Sale price
$5.72 USD
Unit price
per
Couldn't load pickup availability

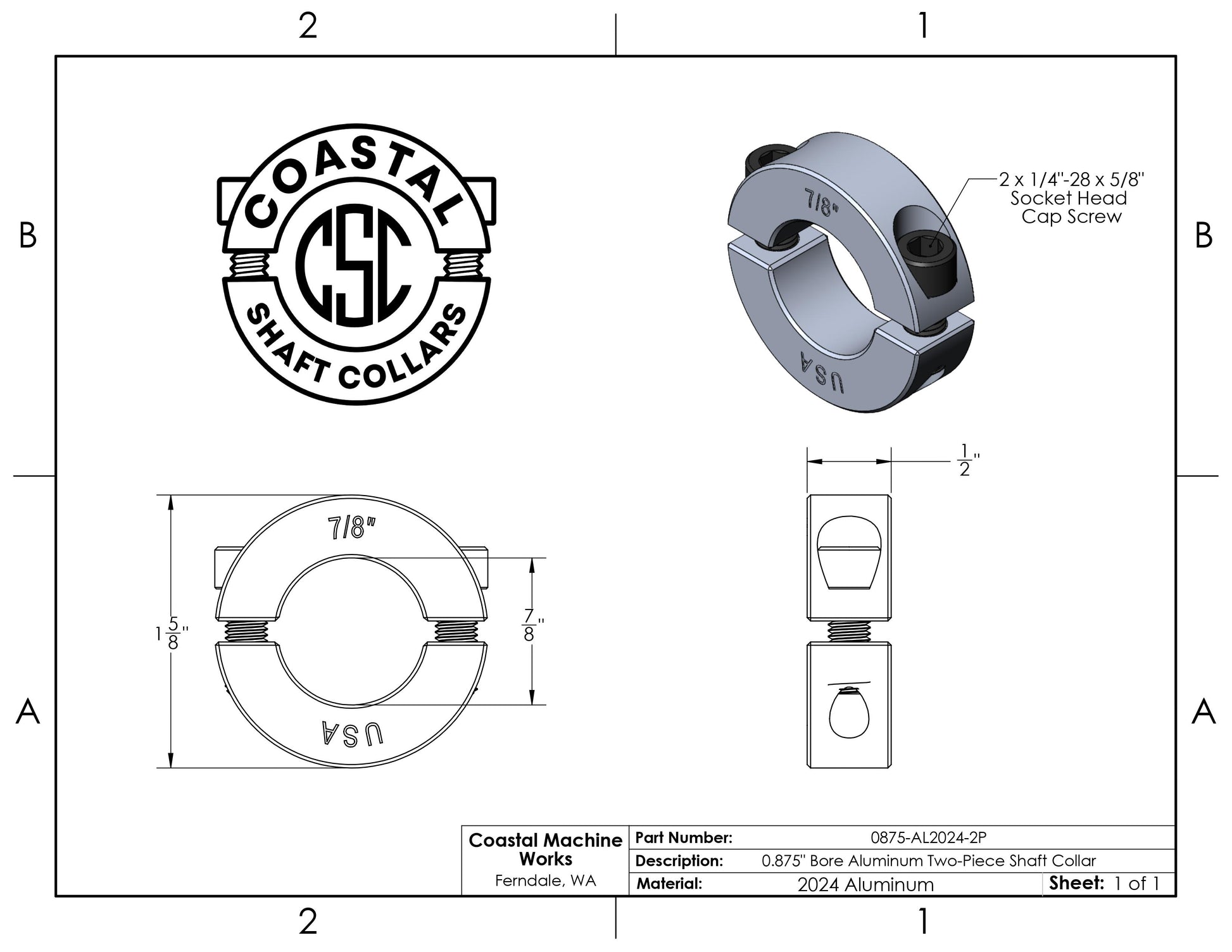

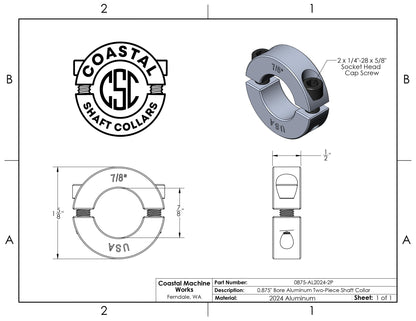

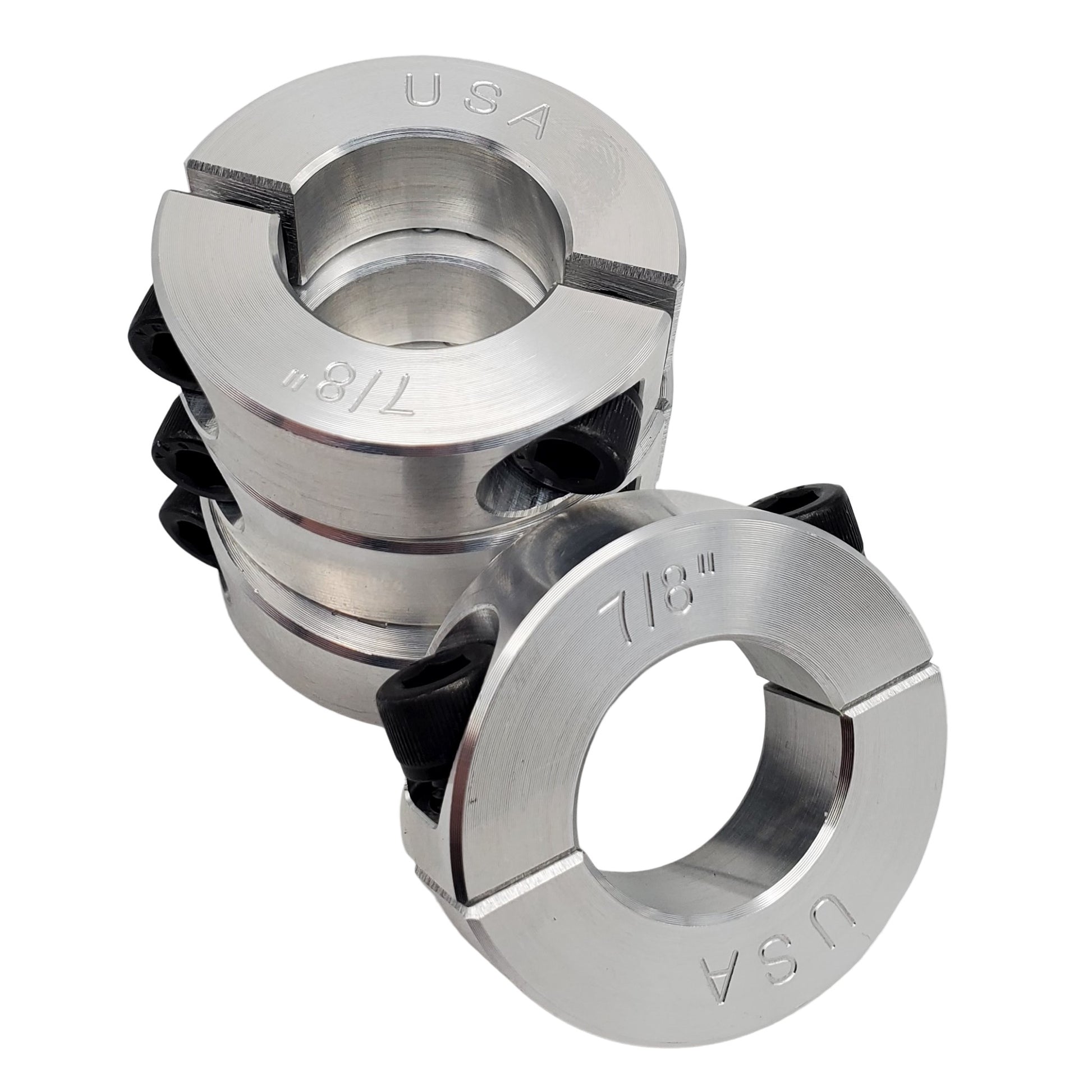

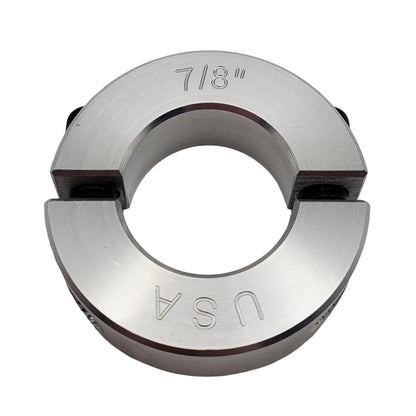

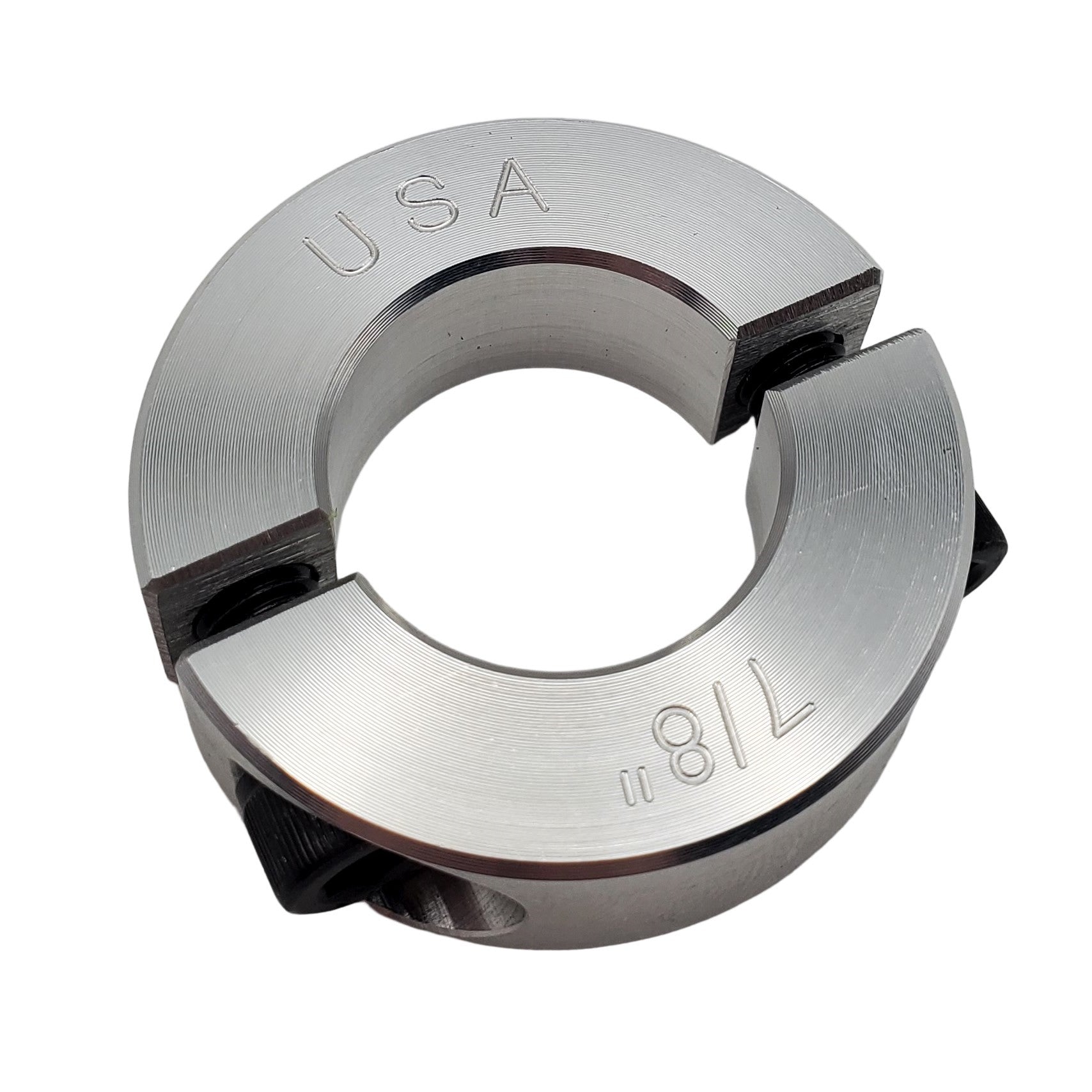

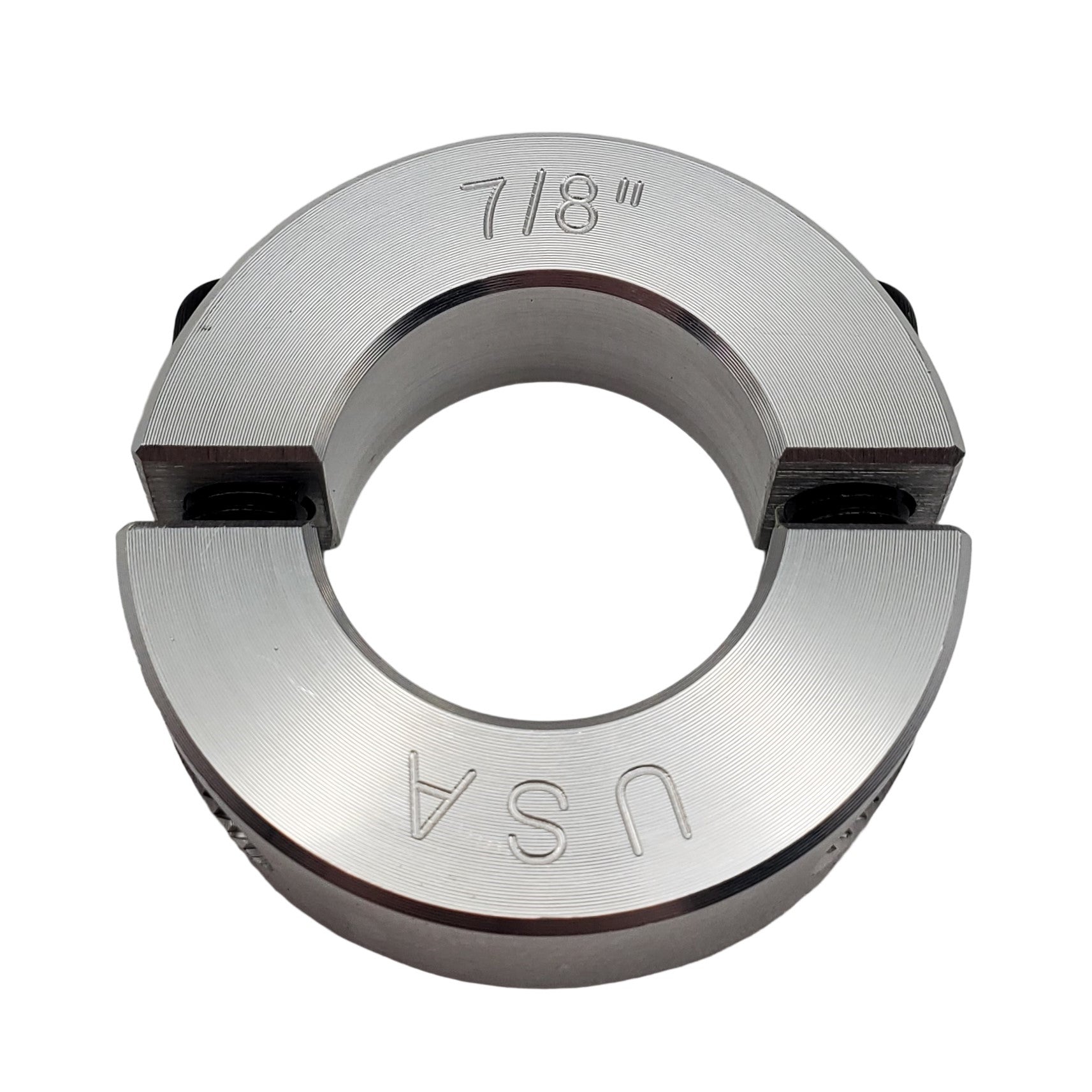

- These two-piece aluminum split shaft collars have an inside diameter of 0.875 inches, an outside diameter of 1.625 inches and a thickness of 0.50 inches.
- Made in the USA. We strive to deliver high quality and precise collars. Every collar has its edges and holes deburred and its corresponding inside diameter engraved on its front face for easy identification.
- Made from 2024 aluminum, these shaft collars are lightweight and have good corrosion resistance. Ideal for environments where moisture is present or when weight is a concern.

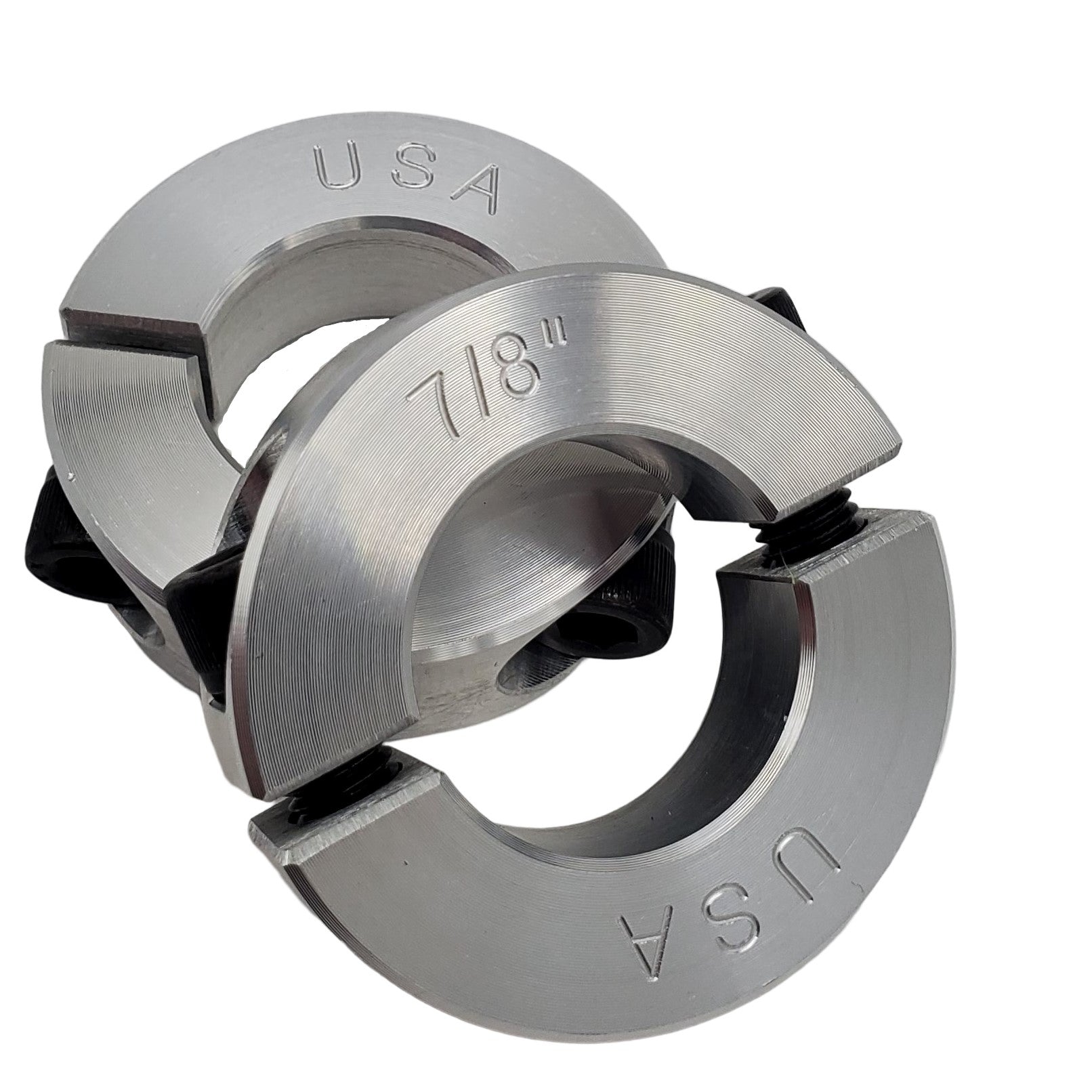

- The two-piece design makes installation simple. The split collar can be disassembled and reassembled anywhere along the shaft without needing to remove other components or having access to the ends of the shaft.
- Strong, Even clamping pressure around the shaft is created using the two included #1/4"-28 x 5/8" black-oxide alloy steel socket head cap screws. Compared to set screw style collars, the two-piece design has significantly higher clamping force and will not mar the shaft/pipe.
