Coastal Shaft Collars
1.00" Diameter - Clamping Two Piece Shaft Collar - 2024 Aluminum
1.00" Diameter - Clamping Two Piece Shaft Collar - 2024 Aluminum
Regular price
$6.44 USD
Regular price
Sale price
$6.44 USD
Unit price
per
135 in stock
Couldn't load pickup availability
Bulk Discounts (Visible in Cart)
Product Details
| Material | 2024 Aluminum |
| For Shaft Diameter | 1.00" |
| Outside Diameter | 1.75" |
| Width | 0.50" |
| Part Number | 2P-AL2024-1000 |
| Mcmaster Carr Equivalent | 6436K73 |
| Grainger Equivalent | SP-16-A |
| STEP File Download | |

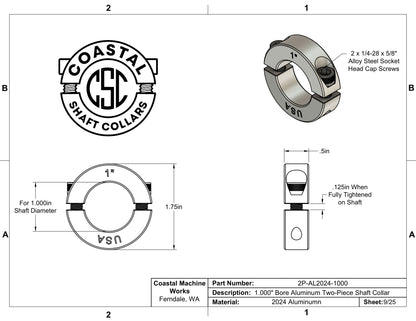

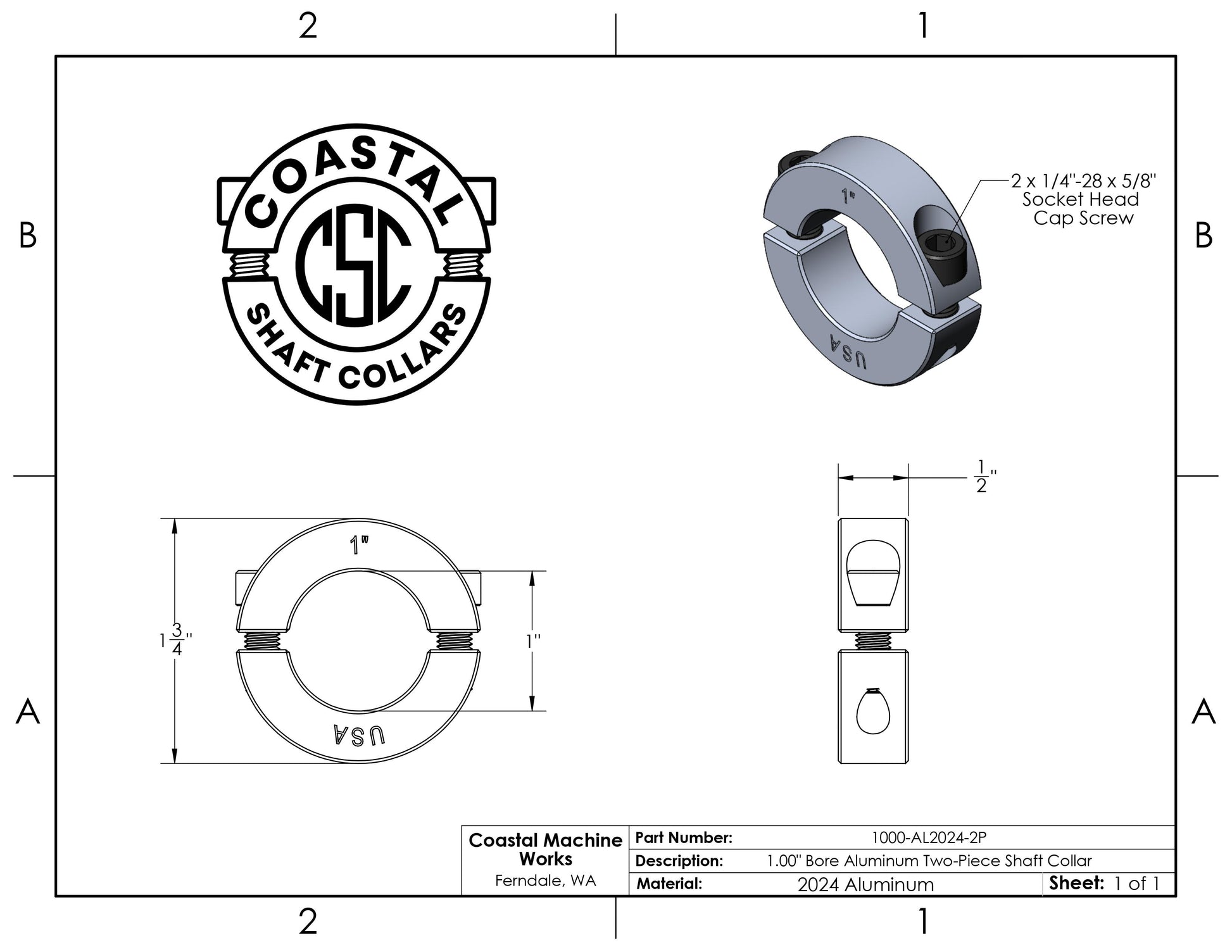

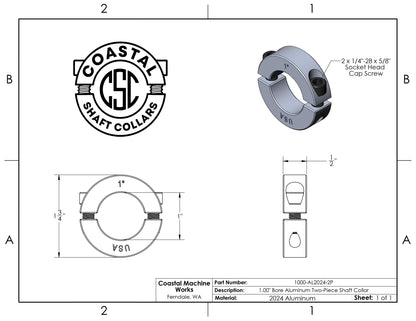

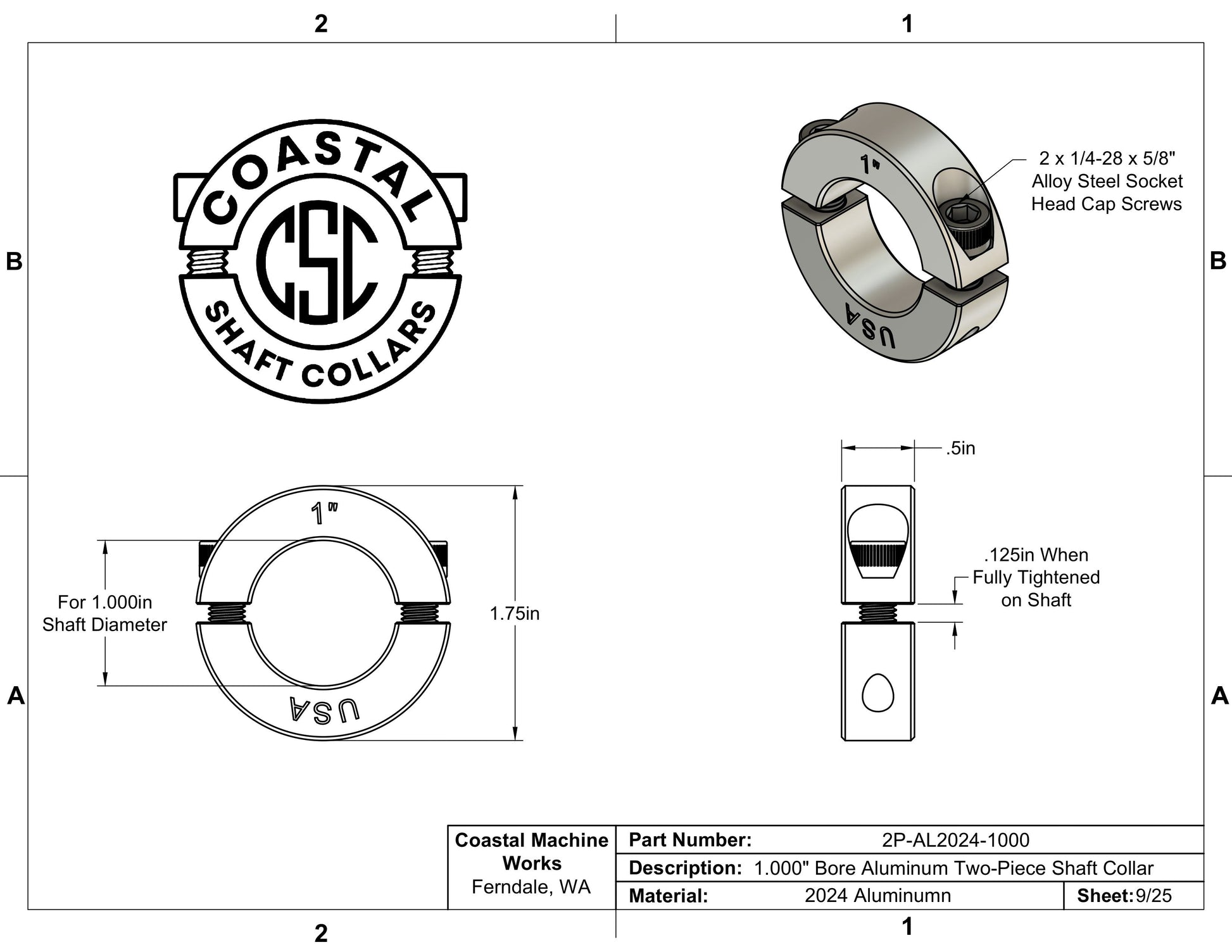

| Drawing Download |
Description

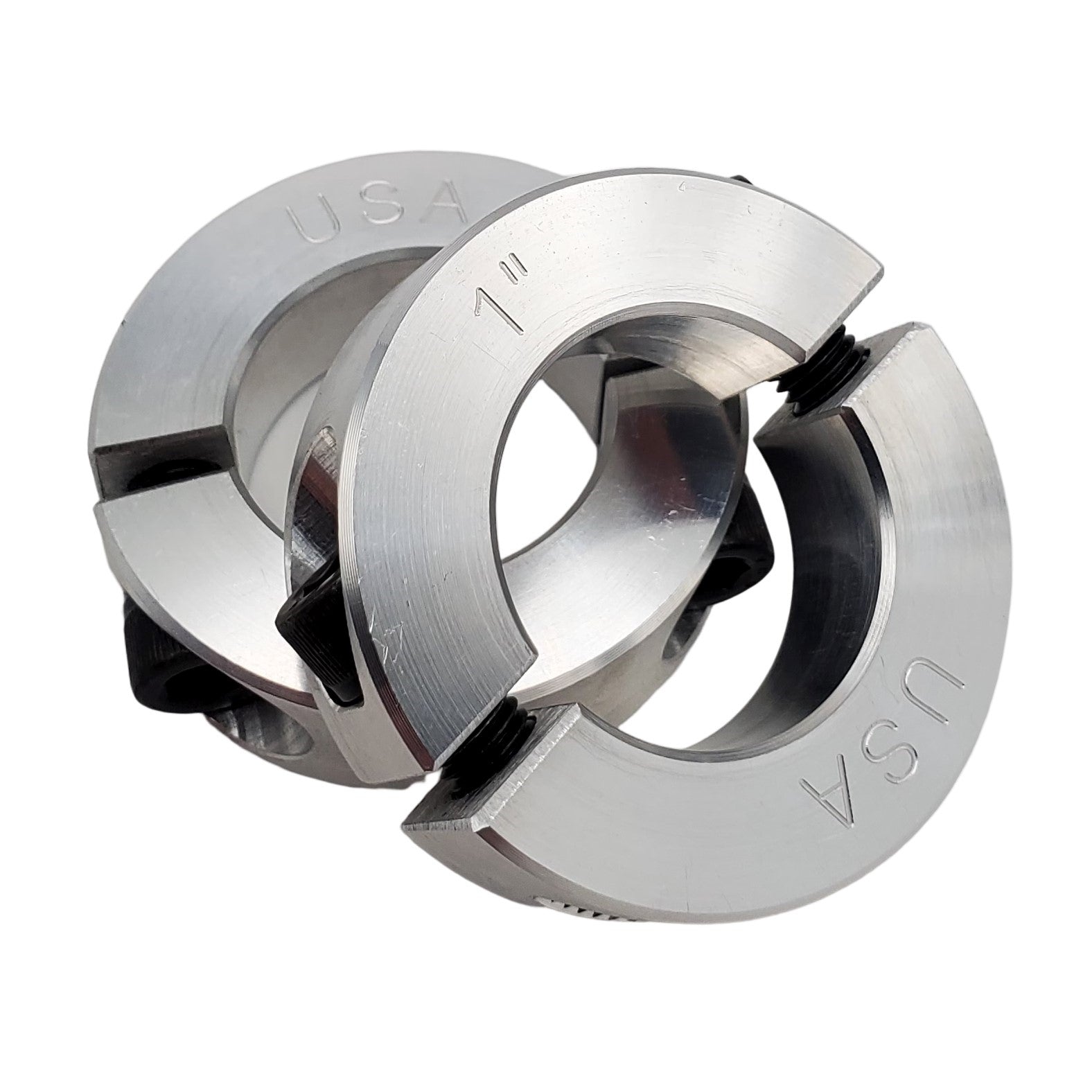

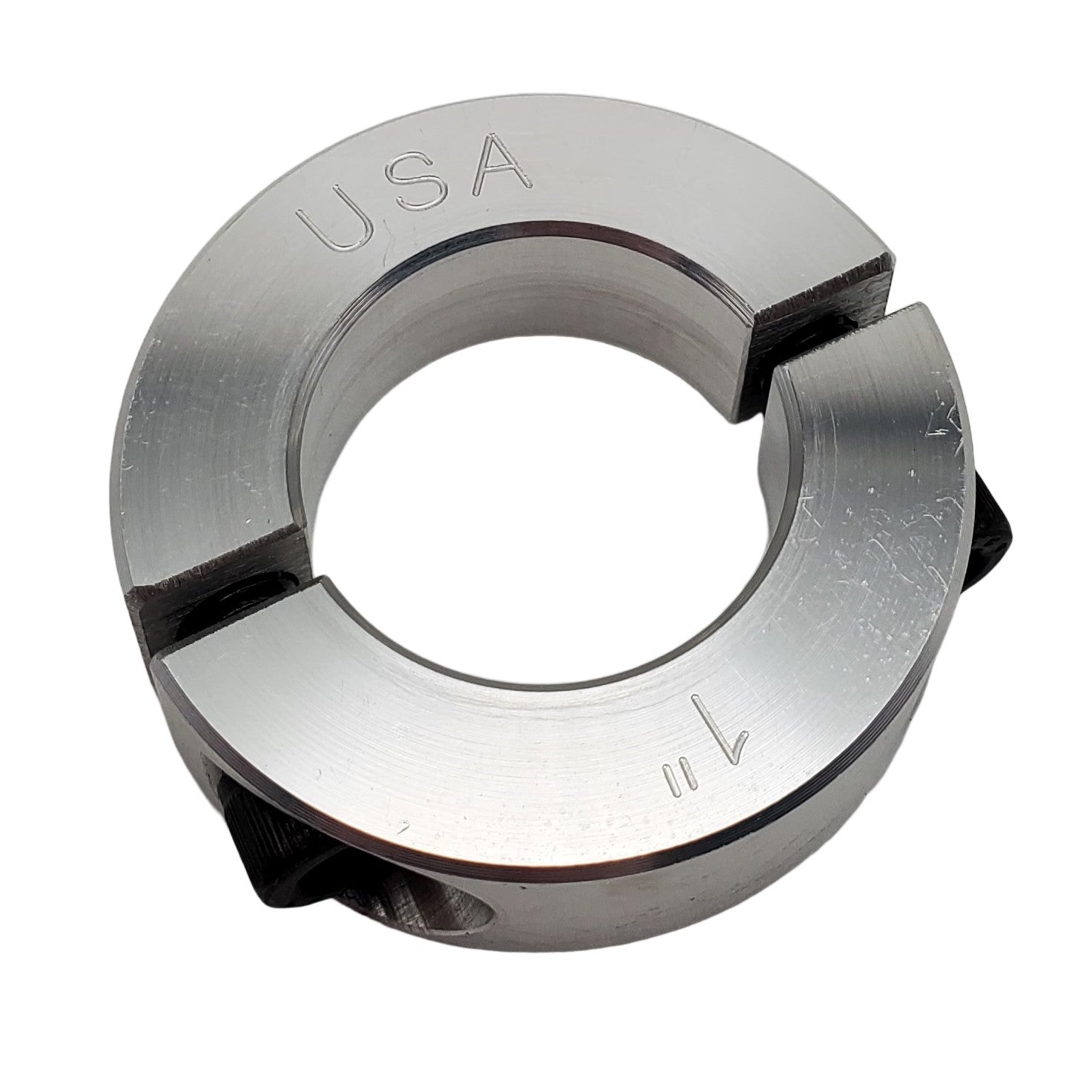

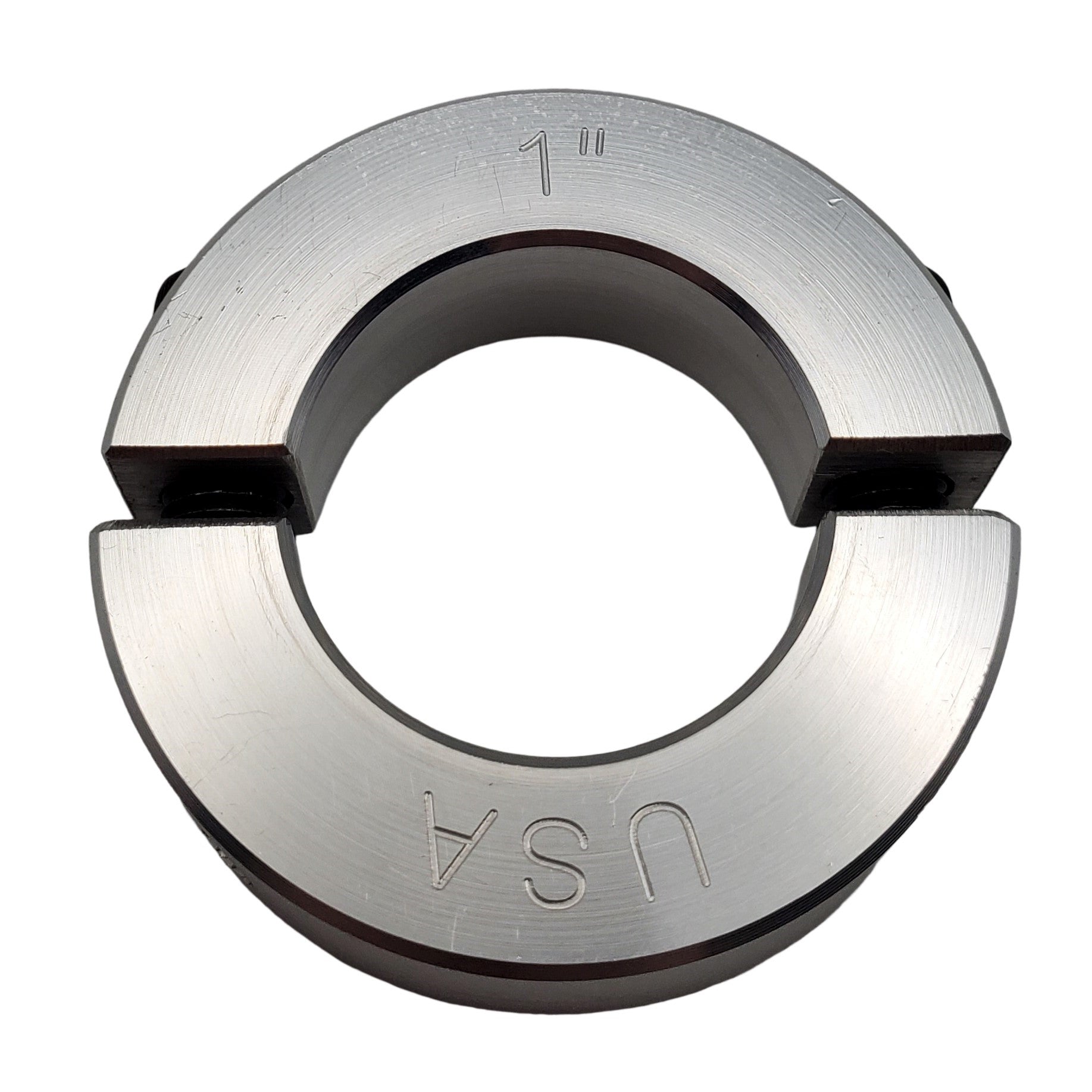

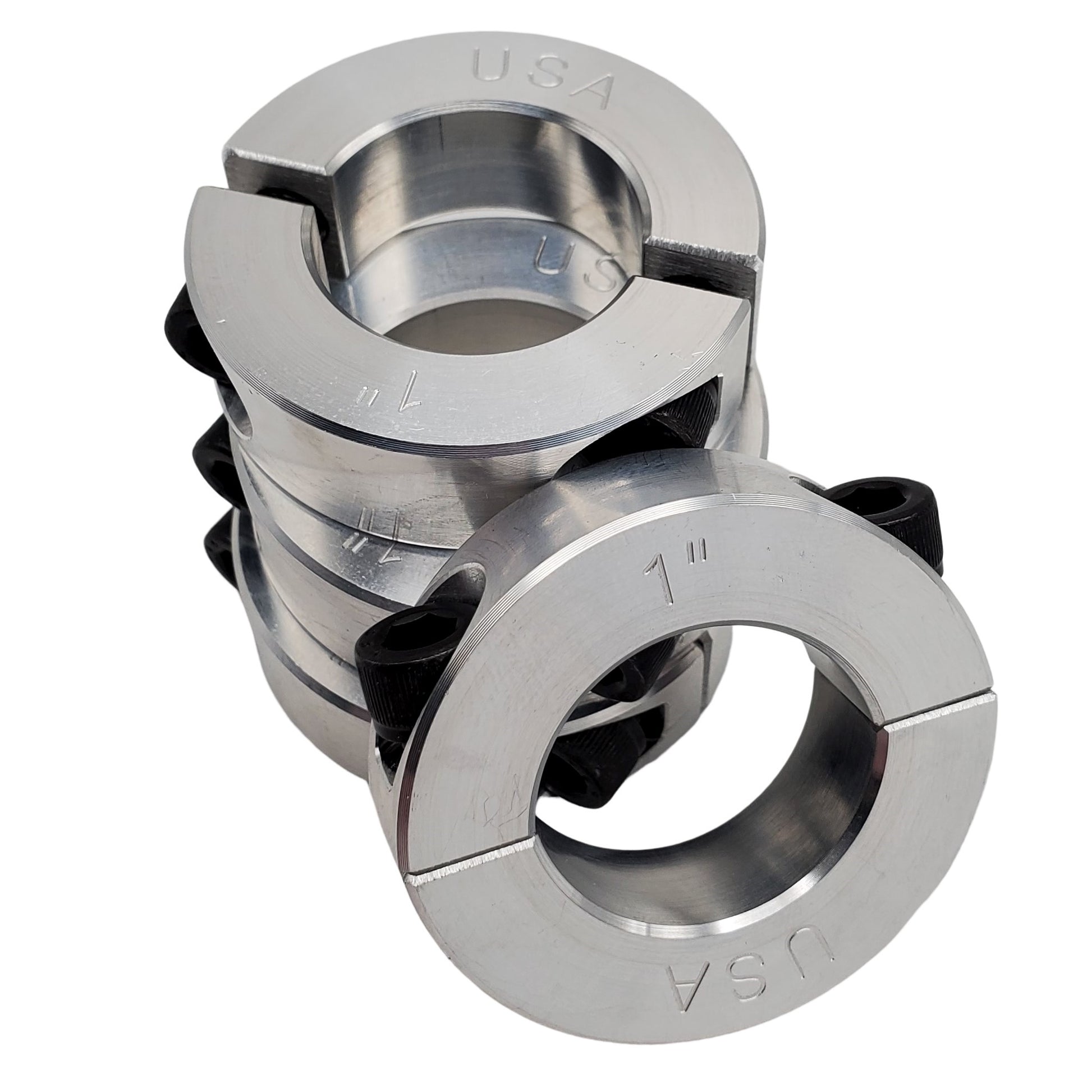

- Two-Piece Design: This two-piece split shaft collar can be easily installed and reinstalled without having to disassemble components or having access to the end of the shaft
- 2024 Aluminum: Constructed from 2024 aluminum, these shaft collars are light weight and offer good corrosion resistance. 2024 aluminum is significantly stronger than 6061, reducing the chance of stripped threads.
- Non-Marring Clamping: Provides a secure, non-marring fit with a significantly higher clamping force than set-screw collars, ensuring no damage to the shaft.
- Includes Hardware: Comes with two 1/4-28 x 5/8" black oxide coated alloy steel socket head cap screws.
- Premium Quality: Each collar is Made in the USA with deburred edges and holes, and a clear size engraving for easy identification.
