1.375" Diameter - Set Screw Shaft Collar - 303 Stainless Steel
1.375" Diameter - Set Screw Shaft Collar - 303 Stainless Steel
Regular price
$13.21 USD
Regular price
Sale price
$13.21 USD
Unit price
per

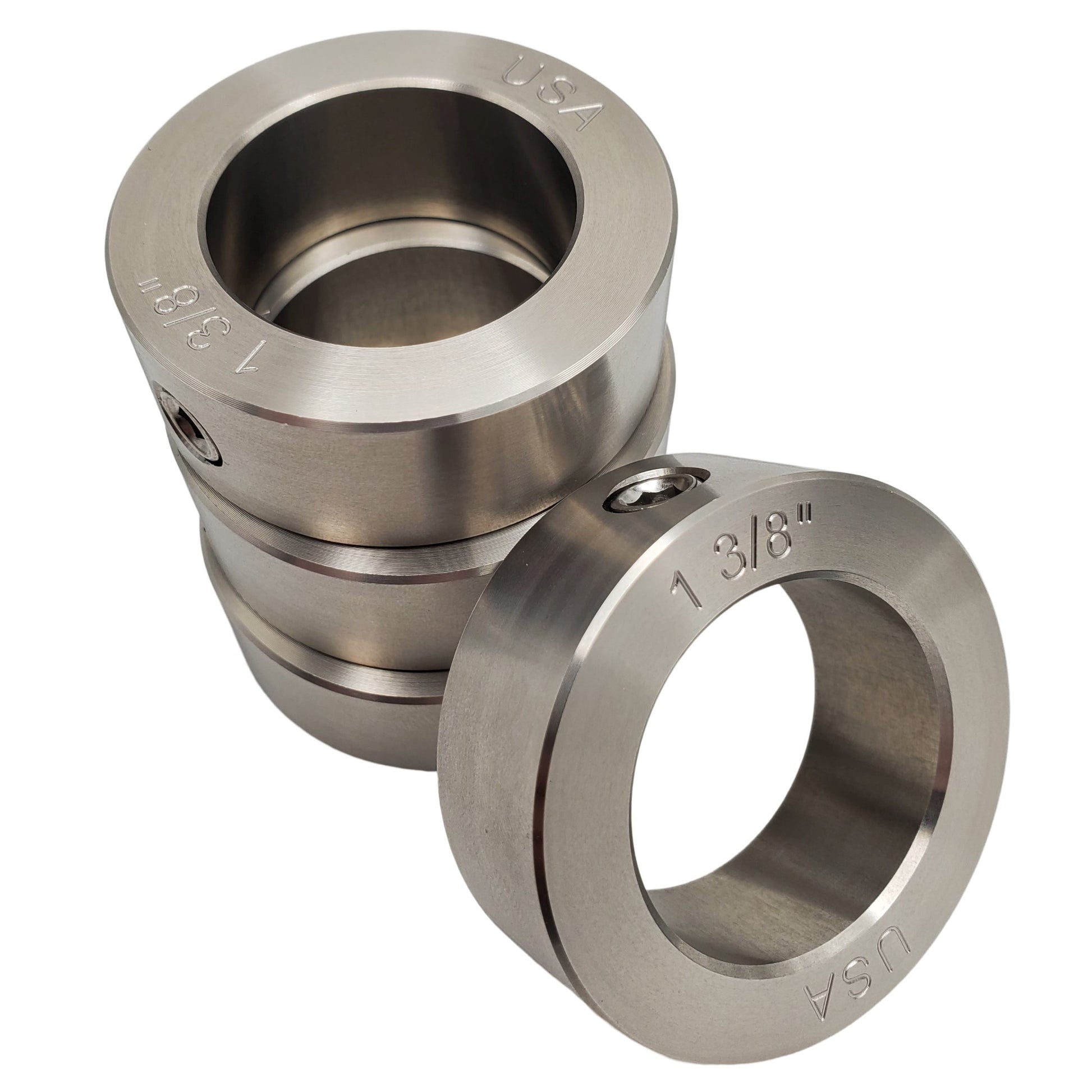

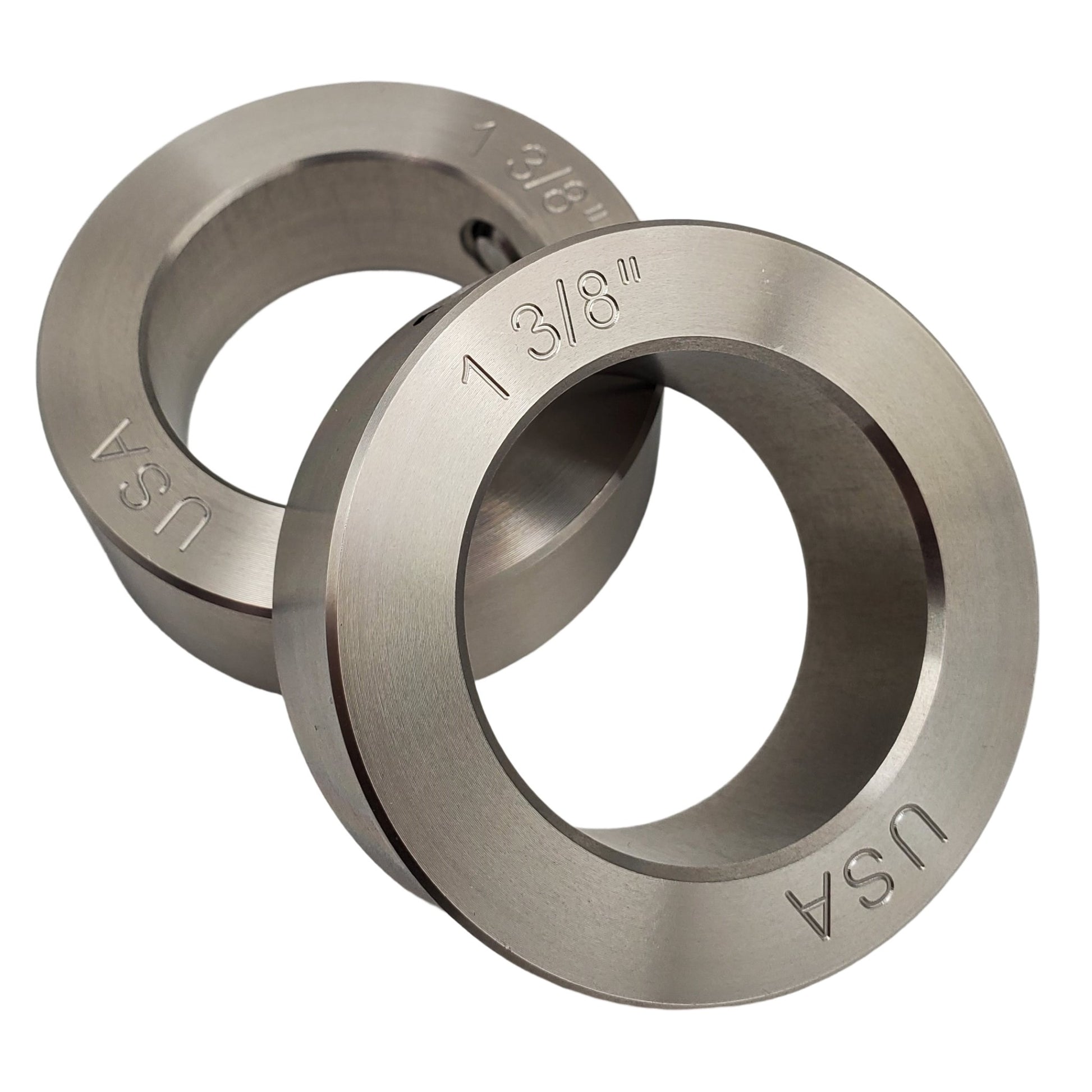

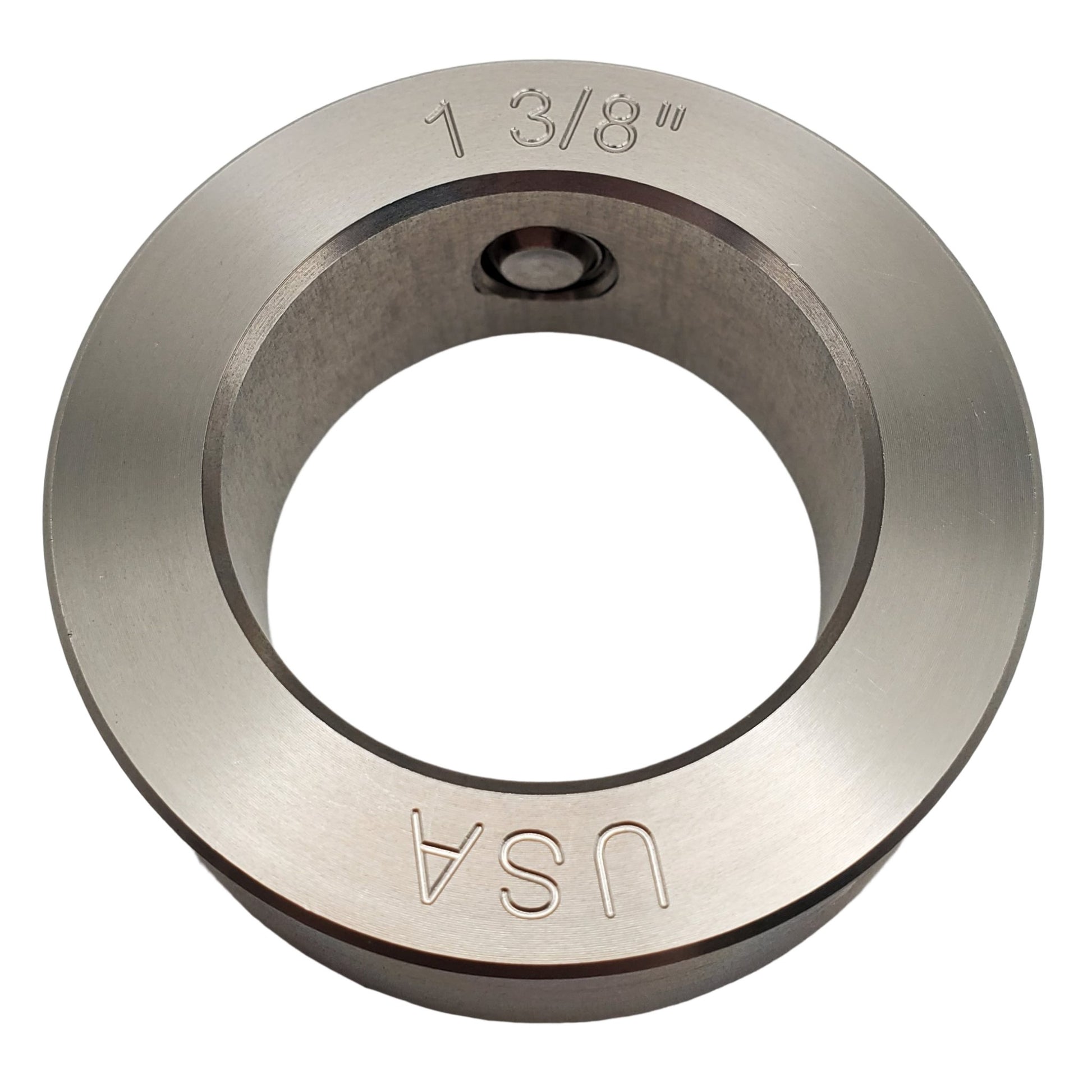

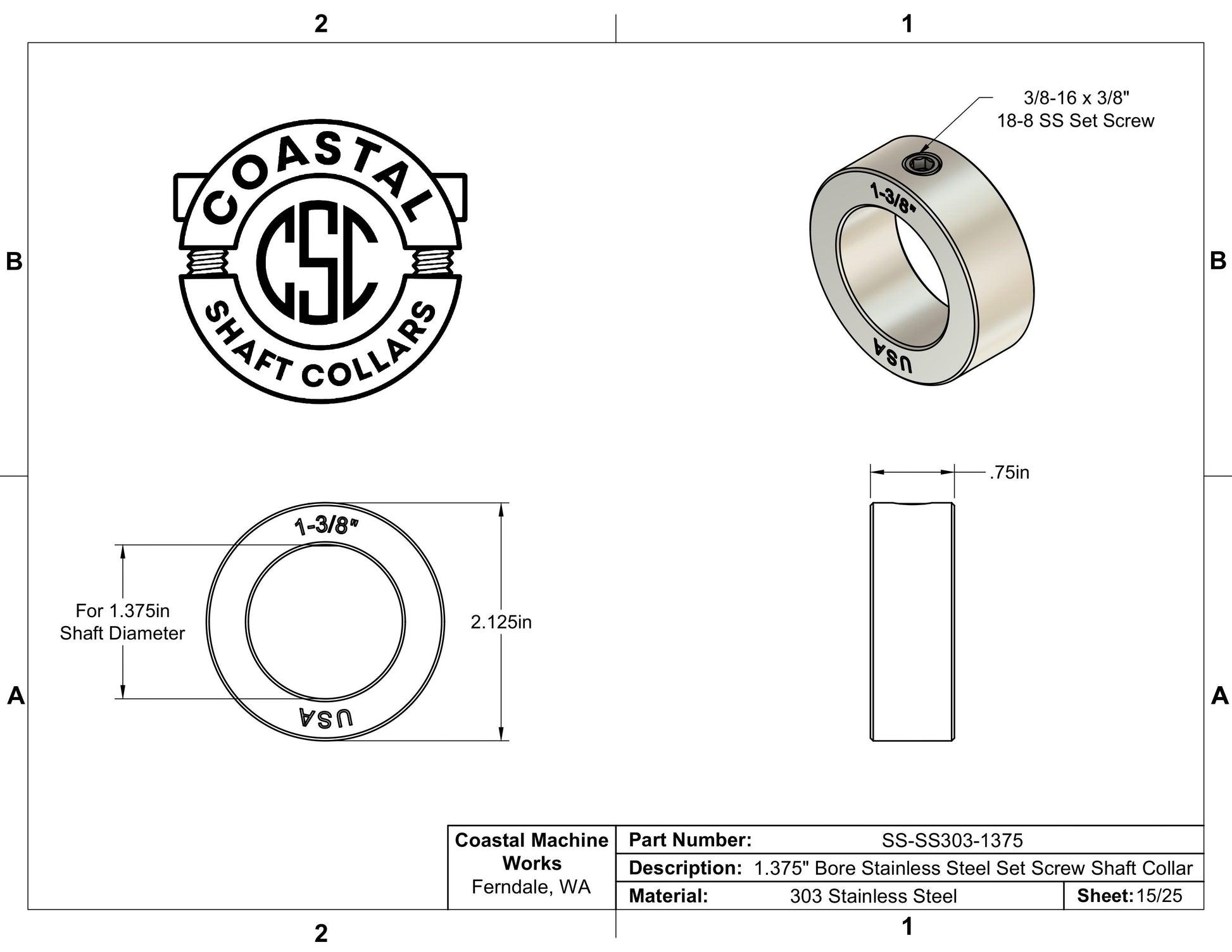

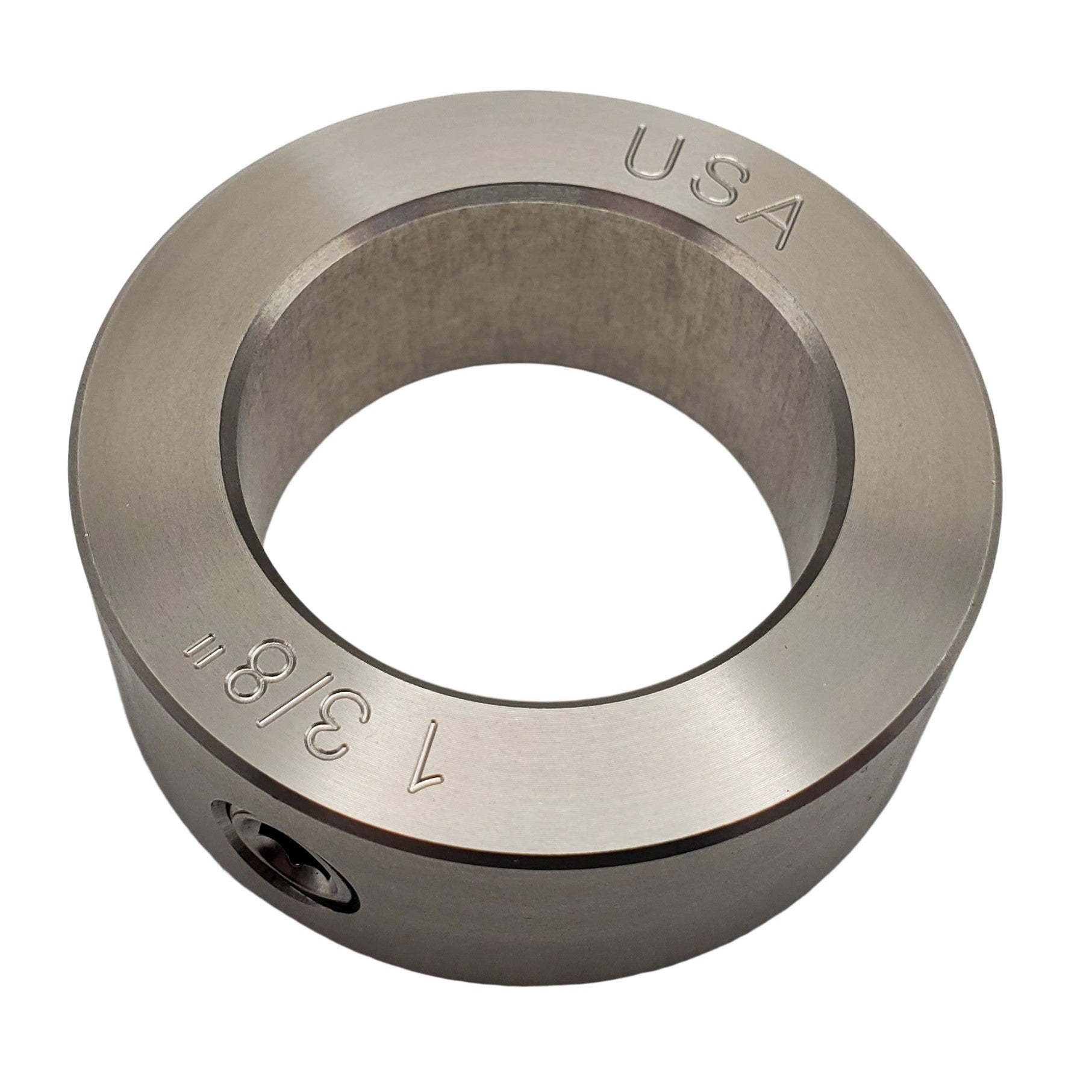

- These set screw stainless steel shaft collars have an inside diameter of 1.375 inches, an outside diameter of 2.125 inches and a thickness of 0.75 inches.
- Made in the USA. We strive to deliver high quality and precise collars. Every collar has its edges and hole deburred and its corresponding inside diameter bore engraved on its front face for easy identification.
- Made from 303 stainless steel, these shaft collars have excellent corrosion resistance and are ideal for wet environments or when corrosive chemicals are present.

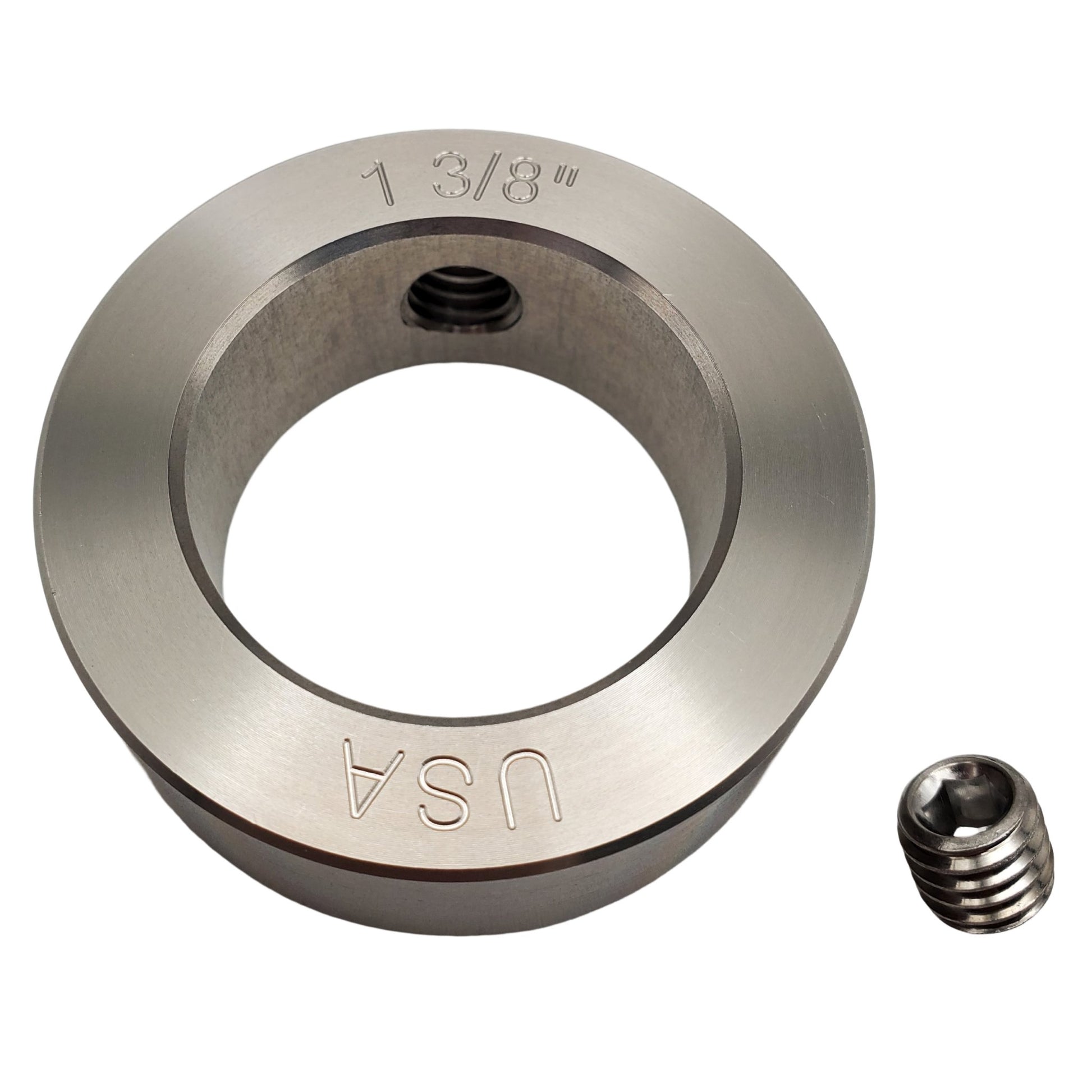

- Install the shaft collar by sliding it on from the end of the shaft or tube and driving the included 3/8-16 x 3/8” cup point set screw into the shaft. The screw digs into the shaft material to create a strong hold.
- Set screw shaft collars are commonly used to locate components, such as bearings, sprockets and pulleys, or as hard stops to limit the motion of the shaft or tube. However, they are very versatile and can be used for many applications outside of the ones listed here.
