1.66" Diameter - Clamping Two Piece Shaft Collar - 303 Stainless Steel

Description

• Discontinued Design: Please note that I've opted to discontinue this line of collars. I now have 1-11/16" collars available which will work just as good for clamping onto 1.25" SCH 40 Pipe. I just have the one in stock so I'll keep this listing up until that one sells.
• Two-Piece Design: This two-piece split shaft collar can be easily installed and reinstalled without having to disassemble components or having access to the end of the shaft
• 303 Stainless Steel: Constructed from 303 stainless steel for excellent corrosion resistance, making it ideal for wet or corrosive environments. Commonly used in the food processing and marine industries.
• Non-Marring Clamping: Provides a secure, non-marring fit with a significantly higher clamping force than set-screw collars, ensuring no damage to the shaft.
• Includes Hardware: Comes with two 5/16-24 x 1” 18-8 stainless steel socket head cap screws.
• Premium Quality: Each collar is Made in the USA with deburred edges and holes, and a clear size engraving for easy identification.

Downloads

Step File: 2P-SS303-1660.step

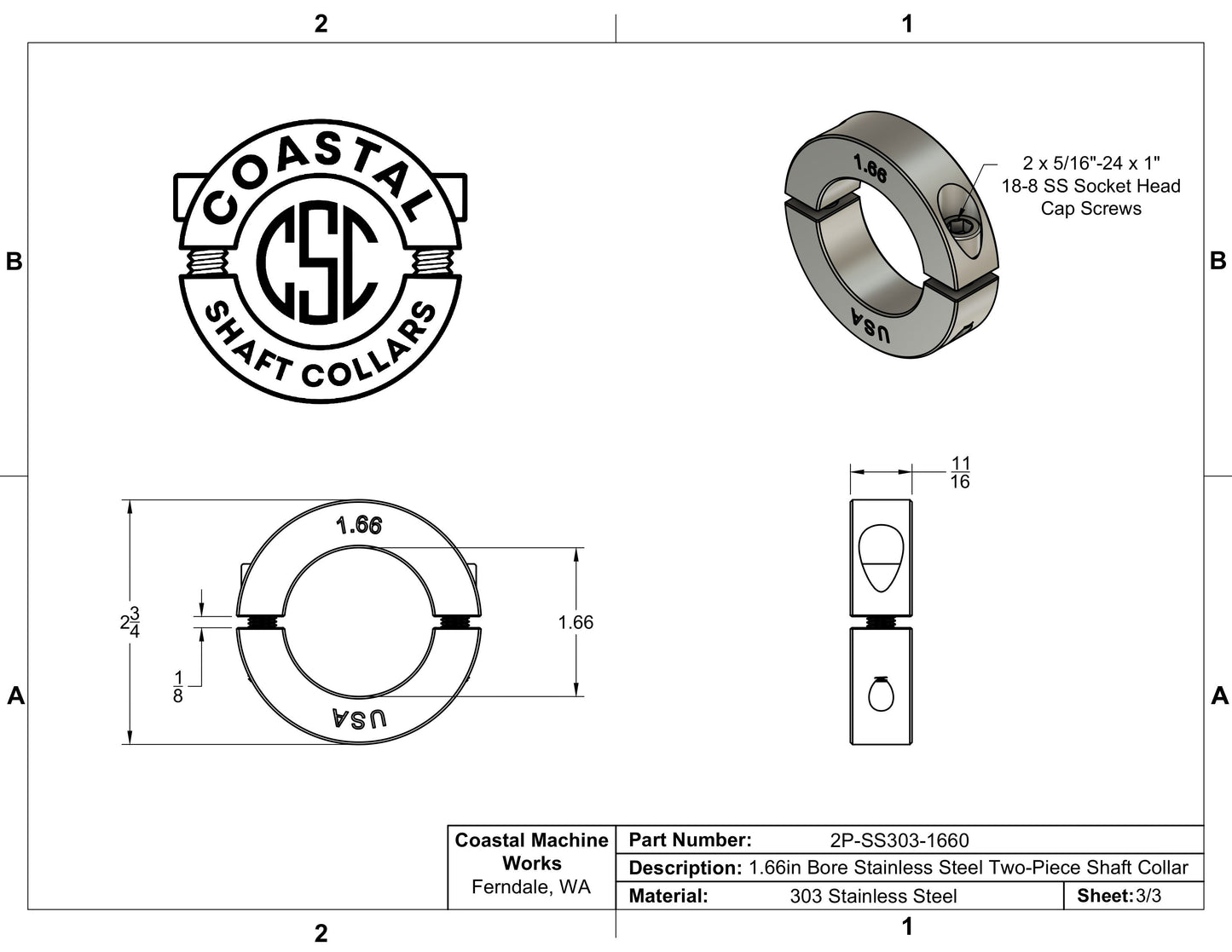

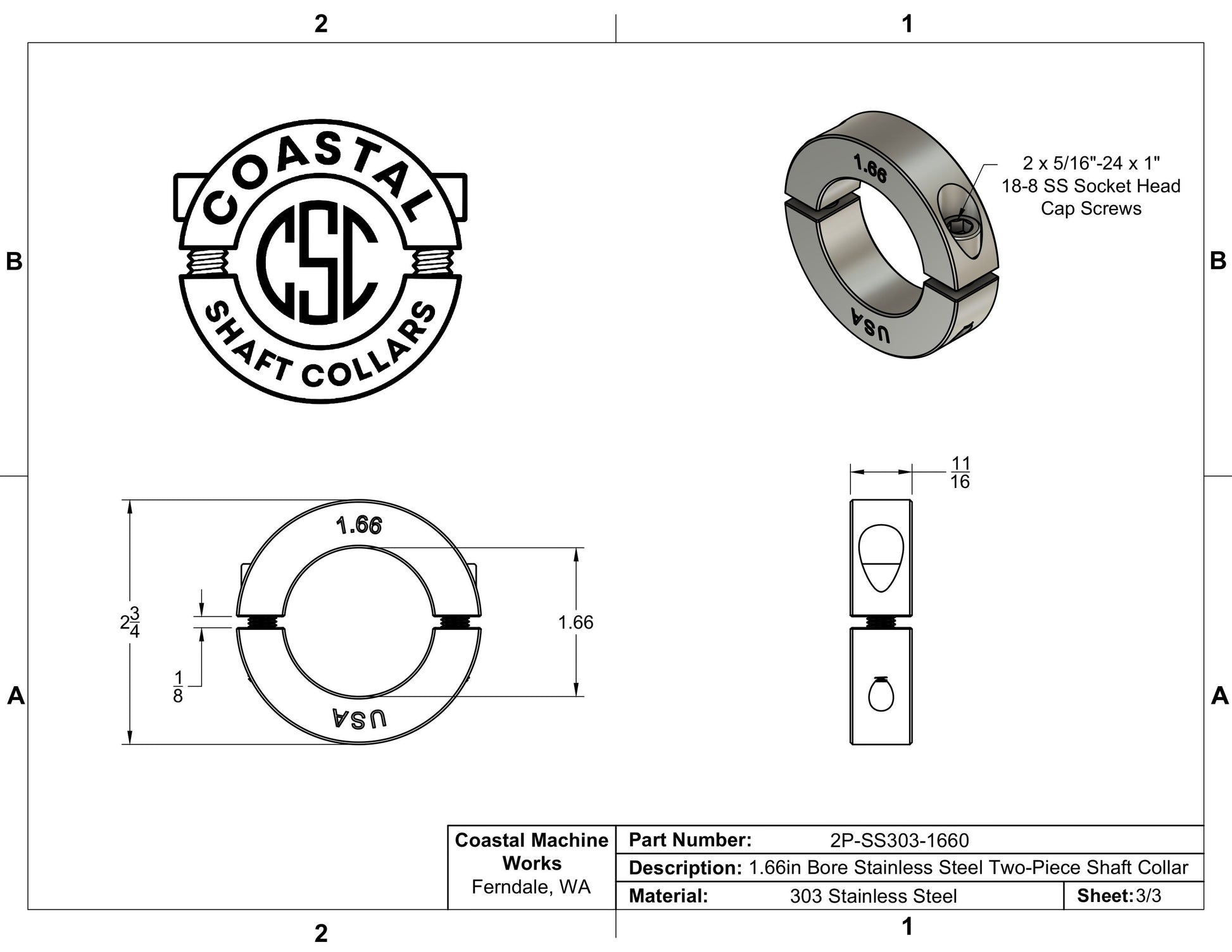

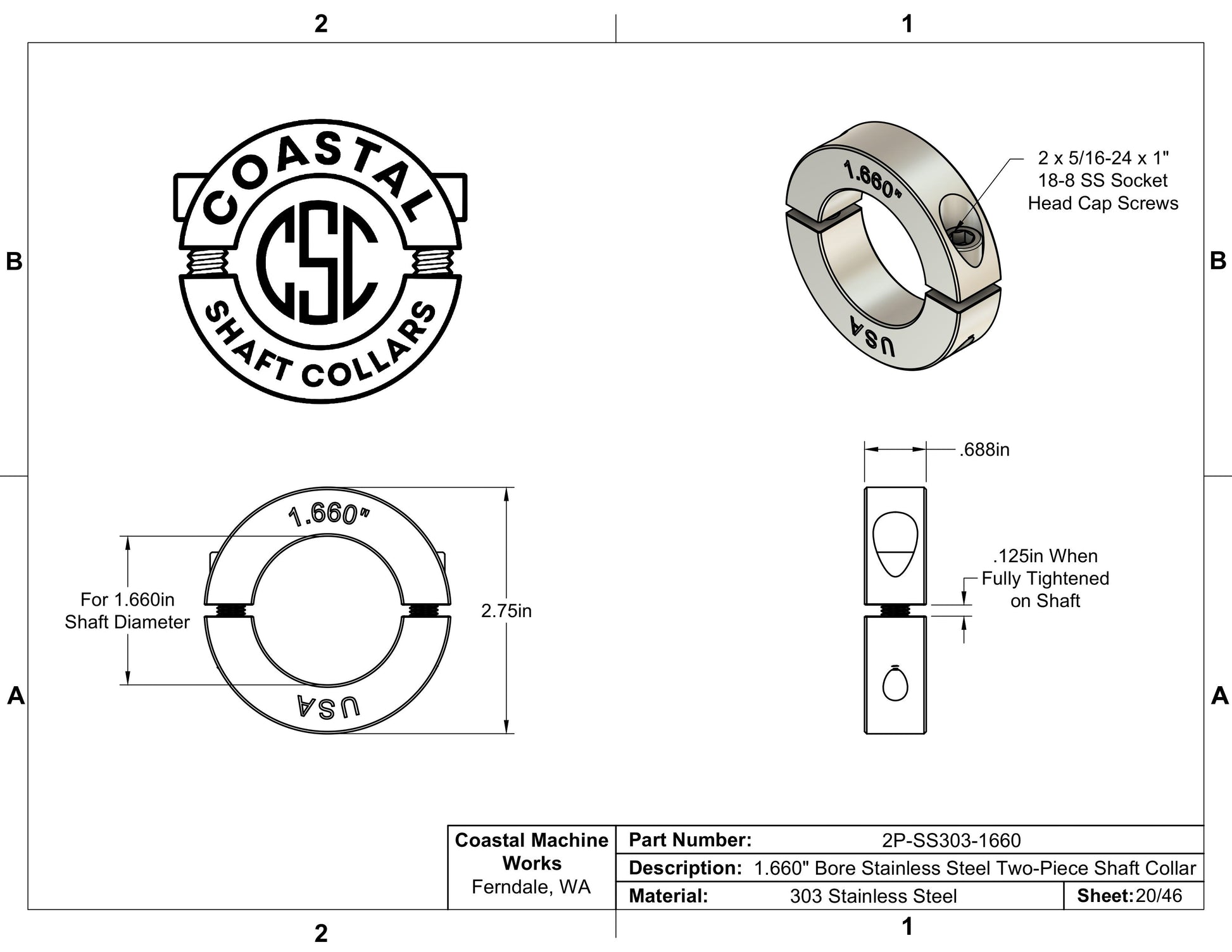

2D Drawing: 2P-SS303-1660.pdf
